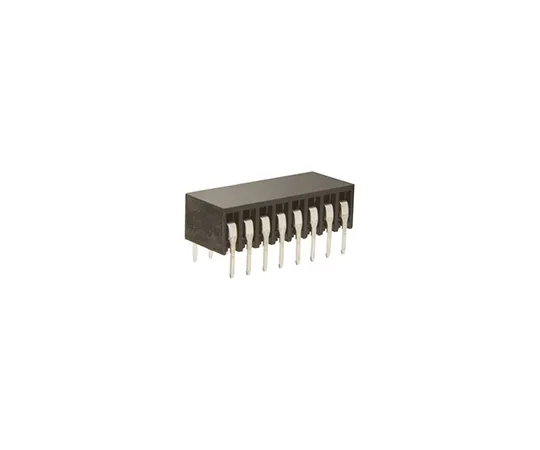

63-4951-02 HARWIN 2.54mm Pitch 16 Way 2 Row Right Angle PCB Socket, Through Hole, Solder Termination M20-7880846
Electronic/Electrical Parts and Controll Equipments

63-4951-02 HARWIN 2.54mm Pitch 16 Way 2 Row Right Angle PCB Socket, Through Hole, Solder Termination M20-7880846

model: 63-4951-02
brand: HARWIN

Product Description

Product Model: 63-4951-02Product Brand: HARWIN Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4951-02
Product Brand: HARWIN

Features

  • Stock number ; 681-6860 681-6860 has a dual (top and bottom entry) configuration with 5.08mm tail spacing. Harwin M20 Series 2.54 mm PCB Sockets. M20 series PCB through hole mounting industry standard sockets with a 2.54mm pitch designed for *** in board to board applications. With a high quality, compact design these M20 series connectors meet the design requirements for increased PCB density and height restrictions. The housings of these M20 sockets are made from UL94V-0 high temperature Liquid Crystal Polymer and withstand the same reflow soldering processes as SMT versions. Highly durable dual beam contacts offer an improved electrical connection and increase the overall connector reliability. These M20 PCB socket connectors are available in single and double row configurations and various contact numbers. Features ; Benefits. Compact design High temperature thermoplastic housings Highly reliable dual beam contacts Up to 300 mating operations Current rating of up to 2A per contact. Product Application Information. These M20 series PCB sockets are suitable for *** in a wide range of applications and established as standard connectors on embedded PCs, motherboards and large electronic systems. Applications include consumer electronics, communications, drives and controls, industrial monitoring and personal computing

Spec

  • Quantity:1bag(5pieces)
  • Number of Contacts : 16
  • Number of Rows : 2
  • Pitch : 2.54mm
  • Type : Socket Strip
  • Mounting Type : Through Hole
  • Body Orientation : Right Angle
  • Termination Method : Solder
  • Current Rating : 3A
  • Contact Material : Phosphor Bronze
  • CODE No.:681-6895
