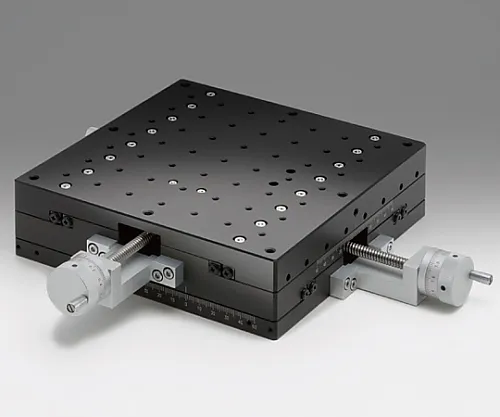

61-6971-82 XY Axis Aluminum Crossed Roller Stage (Large Type) Size 200 x 200mm 1176N (120.0kgf) TAMC-20202
Analyzer, Testing Equipment

61-6971-82 XY Axis Aluminum Crossed Roller Stage (Large Type) Size 200 x 200mm 1176N (120.0kgf) TAMC-20202

model: 61-6971-82
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6971-82Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6971-82
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A large direct movement stage with a screw feed type that ***s a cross roller guide on the aluminum stage body.
  • It is driven by a screw feed system (2 mm pitch) and ***s an adjustment handle to move the stage smoothly with less load.
  • Since the TAMC-20202 supports both □ 180 mm and □ 175 mm hole patterns, it is now possible to mount it directly on a 25 mm pitch plate.

Spec

  • Table surface size: 200 x 200mm
  • Handle operation position: Center
  • Movement amount: ±50mm
  • Movement amount/1 rotation: 2.0mm
  • Minimum reading: 0.02mm
  • Movement guide: Crossed roller
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • Withstand load: 1176N (120.0kgf)
  • Movement accuracy/straightness: 4μm
  • Movement accuracy/pitching: 60″
  • Movement accuracy/yawing: 25″
  • Permissible moment load/pitch: 112N・m
  • Permissible moment load/roll: 112N・m
  • Permissible moment load/yaw: 113N・m
  • Moment rigidity/pitch: 0.06″/N・cm
  • Moment rigidity/roll: 0.06″/N・cm
  • Moment rigidity/yaw: ?
  • Parallelism: 200μm
  • Movement parallelism: 50μm
  • Mass: 6.0kg
  • RoHS conform product
