Features

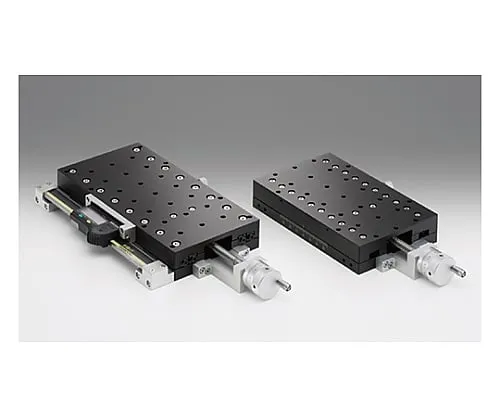

• A lightweight, high-precision, direct movement stage with a rectangular stage surface that ***s a cross roller guide on the aluminum stage body.
• It is driven by a screw feed system (2 mm pitch) and can move the stage to the suds with less load using an adjustment handle.
• The standard type has a scale with a minimum reading of 1 mm on the side of the stage and a sule with 1 rotation and 100 divisions on the side of the handle (minimum reading of 20 μm).
• The standard type has a scale with a minimum reading of 1 mm on the side of the stage and a scale with 1 rotation and 100 divisions on the side of the handle (minimum reading of 20 μm).
• The TAMC-20201 (LS) now supports both □ 180 mm and □ 175 mm hole patterns, making it possible to directly mount the TAMC on a 25 mm pitch plate.
• The LS type with the last part number is a digital display scale with a minimum reading of 10 μm.
• The digital display scale has a reset function and a function that remembers the previous value even when the power is turned off (redisplays the previous value just before turning it off).
