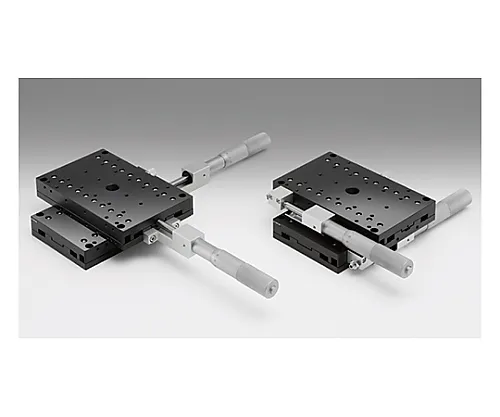

61-6971-67 XY Axis Long Aluminum Crossed Roller Stage Stage Size 100 x 160mm TAM-10162C
Product Description
Product Model: 61-6971-67Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6971-67
Product Brand: SIGMAKOKI CO., LTD.
Features
- A lightweight and highly accurate direct movement stage with a cross roller guide on the aluminum stage body.
- This is ***ful when the stage face is rectangular and you want to ensure a long movement amount.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
-
[
common specification]
- Table surface size: 100 x 160mm
- Movement amount: ±25mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 588N(60.0kgf)
- Movement accuracy/straightness: 2μm
- Movement accuracy/pitching: 40″
- Movement accuracy/yawing: 25″
- Permissible moment load/pitch: 60.8N・m
- Permissible moment load/roll: 60.8N・m
- Permissible moment load/yaw: 58.9N・m
- Moment rigidity/pitch: 0.087″/N・cm
- Moment rigidity/roll: 0.087″/N・cm
- Moment rigidity/yaw: -
- Parallelism: 200μm
- Movement parallelism: 30μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 2.5kg
- RoHS conform product
