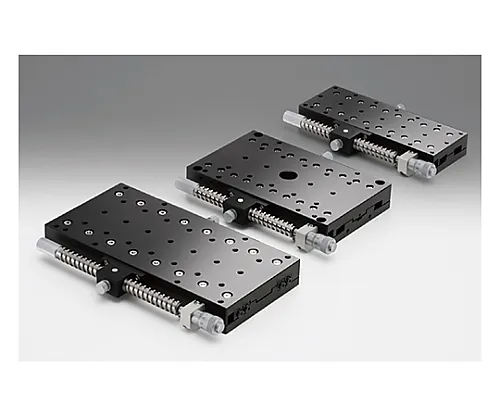

61-6971-65 x Axis Long Aluminum Crossed Roller Stage (Large/Small Movement) TAM-60161SDM
Product Description
Product Model: 61-6971-65Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6971-65
Product Brand: SIGMAKOKI CO., LTD.
Features
- A lightweight and highly accurate direct movement stage with a cross roller guide on the aluminum stage body.
- The table surface is also large, and the movement amount can be secured by 70 mm (±35 mm).
- The coarse fine movement type employs screws with 5 mm leads and can move a long movement amount in a short time.
- In addition, micro adjustment is possible with a micrometer head for fine movement.
Spec
- Table surface size: 60 x 160mm
- Micro operation position: Side
- Movement amount: Coarse: ±35mm, fine: ±3mm
- Movement amount/1 rotation: Coarse: 5mm, fine: 0.5mm
- Micrometer minimum reading: 0.01mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 392N (40.0kgf)
- Movement accuracy/straightness: 2μm
- Movement accuracy/pitching: 40″
- Movement accuracy/yawing: 25″
- Permissible moment load/pitch: 43.2N・m
- Permissible moment load/roll: 41.2N・m
- Permissible moment load/yaw: 39.2N・m
- Moment rigidity/pitch: 0.05″/N・cm
- Moment rigidity/roll: 0.25″/N・cm
- Moment rigidity/yaw: ?
- Parallelism: 50μm
- Movement parallelism: 15μm
- Mass: 1.1kg
- RoHS conform product
