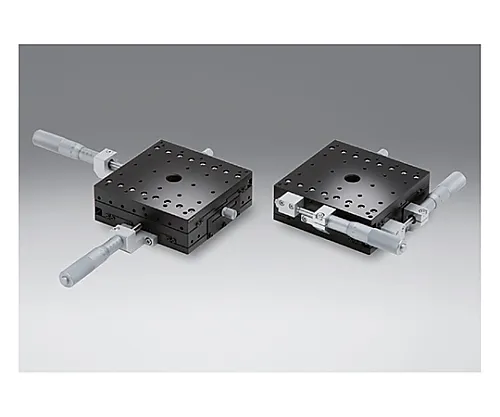

61-6971-52 XY Axis Aluminum Crossed Roller Stage Size 120 x 120mm TAM-1202C
Product Description
Product Model: 61-6971-52Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6971-52
Product Brand: SIGMAKOKI CO., LTD.
Features
- A lightweight and highly accurate direct movement stage with a cross roller guide on the aluminum stage body.
- We have three types of screws: M4, M6, and 1/4 inch.
- The last part number - M6 type is a stage that ***s M6 bolts for both the fixing and moving table part taps of the stage body.
- Can be directly mounted on M6 specification vibration isolators and optical laboratory tables.
- The last part number - UU type is a stage that ***s 1/4 inch bolts for both the fixing and moving table part taps of the stage body.
- Can be directly mounted on a 1/4 inch vibration isolator or optical laboratory table.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
-
[
common specification]
- Table surface size: 120 x 120mm
- Movement amount: ±20mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 588N(60.0kgf)
- Movement accuracy/straightness: 2μm
- Movement accuracy/pitching: 40″
- Movement accuracy/yawing: 25″
- Permissible moment load/pitch: 40.7N・m
- Permissible moment load/roll: 40.7N・m
- Permissible moment load/yaw: 52.0N・m
- Moment rigidity/pitch: 0.13″/N・cm
- Moment rigidity/roll: 0.13″/N・cm
- Moment rigidity/yaw: -
- Parallelism: 50μm
- Movement parallelism: 30μm
- Orthogonality: 10μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 2.5kg
- RoHS conform product
