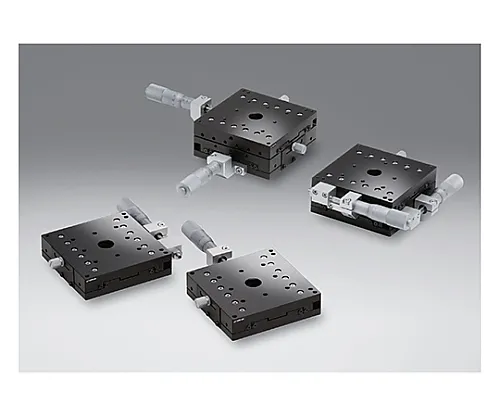

61-6971-36 XY Axis Aluminum Crossed Roller Stage Size 100 x 100mm TAM-1002C
Product Description
Product Model: 61-6971-36Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6971-36
Product Brand: SIGMAKOKI CO., LTD.
Features
- A lightweight and highly accurate direct movement stage with a cross roller guide on the aluminum stage body.
- * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
-
[
common specification]
- Table surface size: 100 x 100mm
- Movement amount: ±12.5mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 490N(50.0kgf)
- Movement accuracy/straightness: 2μm
- Movement accuracy/pitching: 25″
- Movement accuracy/yawing: 15″
- Permissible moment load/pitch: 27.5N・m
- Permissible moment load/roll: 40.7N・m
- Permissible moment load/yaw: 30.9N・m
- Moment rigidity/pitch: 0.17″/N・cm
- Moment rigidity/roll: 0.17″/N・cm
- Moment rigidity/yaw: -
- Parallelism: 50μm
- Movement parallelism: 25μm
- Orthogonality: 10μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 1.5kg
- RoHS conform product
