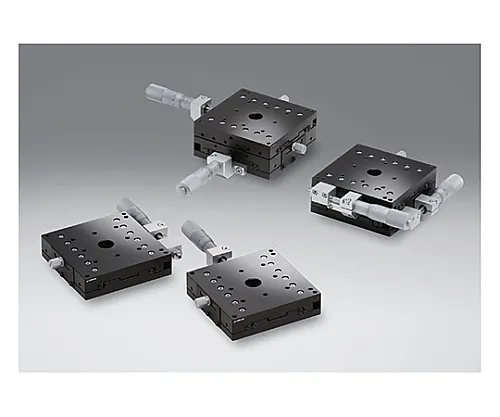

61-6971-29 x Axis Aluminum Crossed Roller Stage Size 100 x 100mm TAM-1001C
Analyzer, Testing Equipment

61-6971-29 x Axis Aluminum Crossed Roller Stage Size 100 x 100mm TAM-1001C

model: 61-6971-29
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6971-29Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6971-29
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A lightweight and highly accurate direct movement stage with a cross roller guide on the aluminum stage body.
  • * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.

Spec

  • [

    common specification]
  • Table surface size: 100 x 100mm
  • Movement amount: ±12.5mm
  • Movement guide: Crossed roller
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • Withstand load: 490N(50.0kgf)
  • Movement accuracy/straightness: 2μm
  • Movement accuracy/pitching: 25″
  • Movement accuracy/yawing: 15″
  • Permissible moment load/pitch: 27.5N・m
  • Permissible moment load/roll: 40.7N・m
  • Permissible moment load/yaw: 30.9N・m
  • Moment rigidity/pitch: 0.09″/N・cm
  • Moment rigidity/roll: 0.07″/N・cm
  • Moment rigidity/yaw: -
  • Parallelism: 50μm
  • Movement parallelism: 15μm
  • [Individual specification]
  • Micro operation position: Center
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Mass: 0.9kg
  • RoHS conform product
