61-6970-70 XY Axis Aluminum Crossed Roller Stage Movement Amount/1 Rotation 0.5mm TAM-652C-M6
Analyzer, Testing Equipment

61-6970-70 XY Axis Aluminum Crossed Roller Stage Movement Amount/1 Rotation 0.5mm TAM-652C-M6

model: 61-6970-70
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6970-70Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6970-70
Product Brand: SIGMAKOKI CO., LTD.

Features

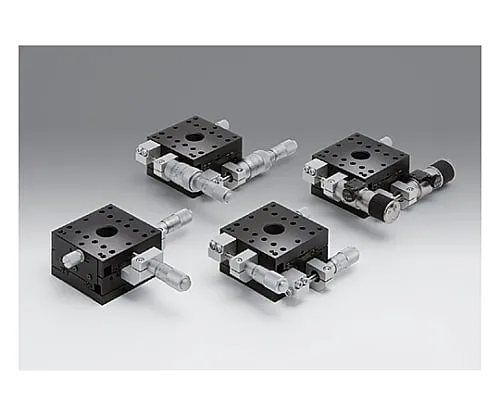

  • A lightweight and highly accurate direct movement stage with a cross roller guide on the aluminum stage body.
  • Both the fixing and moving table part tap of the stage body are stages using M6 bolts.
  • The M6 tap can be directly mounted on a vibration isolator or optical laboratory table machined in a matrix.
  • * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.

Spec

  • [

    common specification]
  • Table surface size: 65 x 65mm
  • Movement guide: Crossed roller
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • Withstand load: 196N(20.0kgf)
  • Movement accuracy/straightness: 2μm
  • Movement accuracy/pitching: 25″ (TAM-651*25-M6, 35″ for TAM-651*25UU)
  • Movement accuracy/yawing: 15″ (TAM-651*25-M6, 25″ for TAM-651*25UU)
  • Permissible moment load/pitch: 4.9N・m
  • Permissible moment load/roll: 4.9N・m
  • Permissible moment load/yaw: 4.9N・m
  • Moment rigidity/pitch: 0.6″/N・cm
  • Moment rigidity/roll: 0.6″/N・cm
  • Parallelism: 50μm
  • Movement parallelism: 20μm
  • Orthogonality: 10μm
  • [Individual specification]
  • Movement amount: ±6.5
  • Micro operation position: Center
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Mass: 0.3kg
  • RoHS conform product
