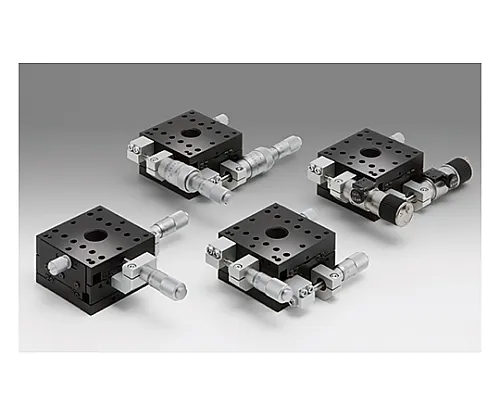

61-6970-19 XY Axis Aluminum Crossed Roller Stage Movement Amount/1 Rotation 0.5mm TAM-602C
Product Description
Product Model: 61-6970-19Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6970-19
Product Brand: SIGMAKOKI CO., LTD.
Spec
-
[
common specification]
- Table surface size: 60 x 60mm
- Movement amount: ±6.5mm
- Movement guide: Crossed roller
- Main material: Aluminum
- Surface treatment: Black anodic oxide
- Withstand load: 196N(20.0kgf)
- Movement accuracy/straightness: 2μm
- Movement accuracy/pitching: 25″
- Movement accuracy/yawing: 15″
- Permissible moment load/pitch: 5.8N・m
- Permissible moment load/roll: 5.8N・m
- Permissible moment load/yaw: 5.8N・m
- Moment rigidity/pitch: 0.6″/N・cm
- Moment rigidity/roll: 0.6″/N・cm
- Moment rigidity/yaw: -
- Parallelism: 50μm
- Movement parallelism: 20μm
- Orthogonality: 10μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 0.6kg
- RoHS conform product
