Product Details

Product Model: 61-6969-26
Product Brand: SIGMAKOKI CO., LTD.

Features

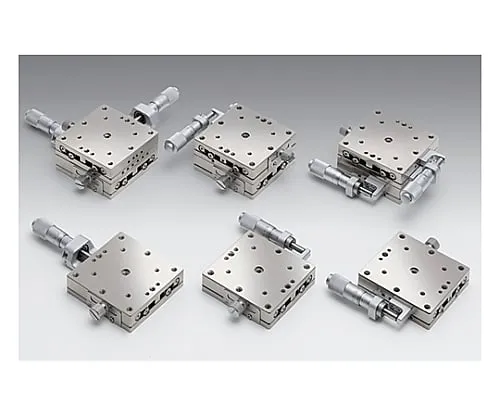

  • It is a high-precision and high-rigidity stainless steel stage with direct guide processing applied to the quenched stainless steel stage body and moving table.
  • The body material is equivalent to SUS440 C, and the surface is treated with electroless nickel plating for excellent rust prevention.
  • The exterior is available in black with a super black chrome (part number *** B) surface treatment.
  • For the TSDH series (□ 60 mm), you can select the opposing clamp with the option code (***: OC).
  • (+ 3,000 yen per 1 shaft) * * Dep***ing on the part to which the micrometer head is fixed or the type of micrometer head, the head may protrude from the top of the stage.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.

Spec

  • [

    common specification]
  • Table surface size: 60 x 60mm
  • Movement amount: ±6.5mm
  • Movement guide: Ball guide
  • Main material: Stainless Seel (SUS440C) equivalent
  • Surface treatment: Electroless nickel (part number suffix B: Super black chrome)
  • Withstand load: 392N(30.0kgf)
  • Movement accuracy/straightness: 1μm
  • Movement accuracy/pitching: 25″
  • Movement accuracy/yawing: 15″
  • Permissible moment load/pitch: 13.2N・m
  • Permissible moment load/roll: 14.7N・m
  • Permissible moment load/yaw: 9.8N・m
  • Moment rigidity/pitch: 0.2″/N・cm
  • Moment rigidity/roll: 0.13″/N・cm
  • Moment rigidity/yaw: 0.16″/N・cm
  • Parallelism: 30μm
  • Movement parallelism: 10μm
  • [Individual specification]
  • Micro operation position: Center
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Mass: 0.45kg
  • RoHS conform product
