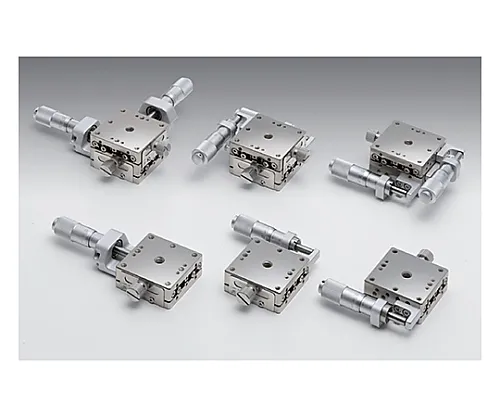

61-6969-05 x Axis General-Purpose Stainless Steel Stage Size 40 x 40mm TSDH-401C
Product Description
Product Model: 61-6969-05Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6969-05
Product Brand: SIGMAKOKI CO., LTD.
Features
- High-precision, high-rigidity stainless steel stage with direct guide processing on the quenched stainless steel stage body and moving table.
- The body material is equivalent to SUS440C, and the surface treatment is electroless nickel plating, which is excellent in rust prevention.
- Available in black exterior with super black chrome (part number B at the ***).
- For the TSDH series (□ 40 mm), the opposing clamp can be selected with the option code (***: OC).
- (+ 3,000 yen per 1 axis) * * Dep***ing on the type of the micrometer head or the part that secures the micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
-
[
common specification]
- Table surface size: 40 x 40mm
- Movement amount: ±6.5mm
- Movement guide: Ball guide
- Main material: Stainless Seel (SUS440C) equivalent
- Surface treatment: Electroless nickel (part number suffix B: Super black chrome)
- Withstand load: 196N(20.0kgf)
- Movement accuracy/straightness: 1μm
- Movement accuracy/pitching: 30″
- Movement accuracy/yawing: 25″
- Permissible moment load/pitch: 7.8N・m
- Permissible moment load/roll: 7.8N・m
- Permissible moment load/yaw: 5.0N・m
- Moment rigidity/pitch: 0.3″/N・cm
- Moment rigidity/roll: 0.2″/N・cm
- Moment rigidity/yaw: 0.23″/N・cm
- Parallelism: 30μm
- Movement parallelism: 10μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 0.2kg
- RoHS conform product
