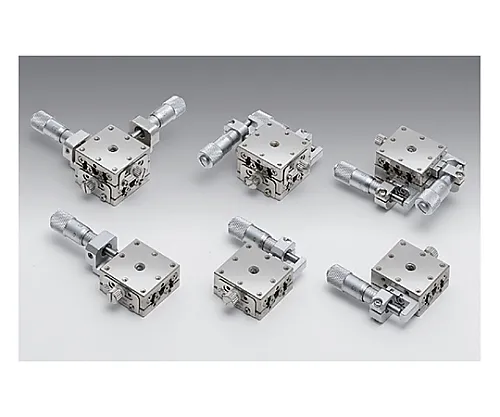

61-6968-97 XY Axis General-Purpose Stainless Steel Stage Size 25 x 25mm TSDH-252WC
Analyzer, Testing Equipment

61-6968-97 XY Axis General-Purpose Stainless Steel Stage Size 25 x 25mm TSDH-252WC

model: 61-6968-97
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6968-97Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6968-97
Product Brand: SIGMAKOKI CO., LTD.

Features

  • High-precision, high-rigidity stainless steel stage with direct guide processing on the quenched stainless steel stage body and moving table.
  • The body material is equivalent to SUS440C, and the surface treatment is electroless nickel plating, which is excellent in rust prevention.
  • * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.

Spec

  • [

    common specification]
  • Table surface size: 25 x 25mm
  • Movement amount: ±3mm
  • Movement guide: Ball guide
  • Main material: Stainless Seel (SUS440C) equivalent
  • Surface treatment: Electroless nickel
  • Withstand load: 59.8N(6.0kgf)
  • Movement accuracy/straightness: 1μm
  • Movement accuracy/pitching: 30″
  • Movement accuracy/yawing: 25″
  • Permissible moment load/pitch: 4.0N・m
  • Permissible moment load/roll: 4.0N・m
  • Permissible moment load/yaw: 2.0N・m
  • Moment rigidity/pitch: 3.4″/N・cm
  • Moment rigidity/roll: 3.4″/N・cm
  • Moment rigidity/yaw: 3.2″/N・cm
  • Parallelism: 50μm
  • Movement parallelism: 20μm
  • Orthogonality: 10μm
  • [Individual specification]
  • Micro operation position: Center
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Mass: 0.14kg
  • RoHS conform product
