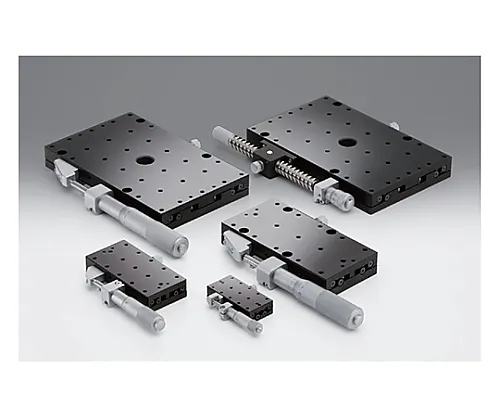

61-6968-84 XY Axis Long Steel Stage-M6- TSD-65122C-M6
Product Description
Product Model: 61-6968-84Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6968-84
Product Brand: SIGMAKOKI CO., LTD.
Features
- Quenched steel stage body and moving table are directly guided for extremely durable direct movement stage.
- Both the fixing and moving table part taps of the stage body are stages using M6 or 1/4 inch bolts.
- Can be mounted directly on M6 or 1/4 inch type vibration isolators and optical laboratory tables.
- The UU type can be mounted directly on a 1/4 inch vibration isolator or optical laboratory bench.
- * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
- Table surface size: 65 x 120mm
- Micro operation position: Center
- Movement amount: ±20mm
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome
- Withstand load: 392N(40kgf)
- Movement accuracy/straightness: 3μm
- Movement accuracy/pitching: 25″
- Movement accuracy/yawing: 15″
- Permissible moment load/pitch: 9.8N・m
- Permissible moment load/roll: 9.8N・m
- Permissible moment load/yaw: 9.8N・m
- Moment rigidity/pitch: 0.3″/N・cm
- Moment rigidity/roll: 0.3″/N・cm
- Moment rigidity/yaw: 0.3″/N・cm
- Parallelism: 100μm
- Movement parallelism: 25μm
- Mass: 2.4kg
- RoHS conform product
