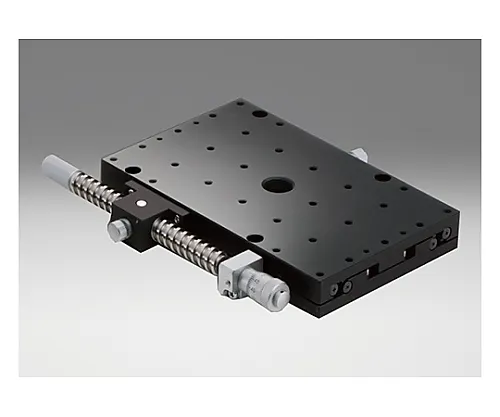

61-6968-76 X-Axis Steel Stage (Large/Small Movement) 686N (70.0kgf) TSD-10161SDM
Product Description
Product Model: 61-6968-76Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6968-76
Product Brand: SIGMAKOKI CO., LTD.
Features
- Quenched steel stage body and moving table are directly guided for extremely durable direct movement stage.
- The coarse fine movement type employs screws with 5 mm leads and can move a long movement amount in a short time.
- In addition, micro adjustment is possible with a micrometer head for fine movement.
- * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
- Table surface size: 60 x 160mm
- Micro operation position: Side
- Movement amount: Coarse: ±35mm, fine: ±3mm
- Movement amount/1 rotation: Coarse: 5mm, fine: 0.5mm
- Micrometer minimum reading: Coarse: - - Fine: 0.01mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome
- Withstand load: 686N (70.0kgf)
- Movement accuracy/straightness: 1μm
- Movement accuracy/pitching: 25″
- Movement accuracy/yawing: 15″
- Permissible moment load/pitch: 51.0N・m
- Permissible moment load/roll: 41.7N・m
- Permissible moment load/yaw: 19.6N・m
- Moment rigidity/pitch: 0.02″/N・cm
- Moment rigidity/roll: 0.03″/N・cm
- Moment rigidity/yaw: 0.02″/N・cm
- Parallelism: 50μm
- Movement parallelism: 15μm
- Mass: 2.5kg
- RoHS conform product
