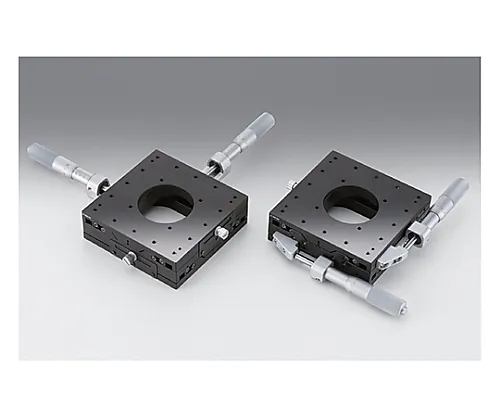

61-6968-58 XY Axis Steel Stage (Transmission) Size 120 x 120mm TSD-1202CH
Analyzer, Testing Equipment

61-6968-58 XY Axis Steel Stage (Transmission) Size 120 x 120mm TSD-1202CH

model: 61-6968-58
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6968-58Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6968-58
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is a very durable XY axis direct movement stage with direct guide processing applied to the quenched steel stage body and moving table.
  • The transparent hole (φ56 mm) in the center of the stage can always hold φ56 mm even when the table is moved.
  • The transparent hole (φ56 mm) at the center of the stage can always hold φ56 mm even when the table is moved in the X direction.
  • M4 and M6 or 1/4 inch can be selected for both the fixed and moving table part tap of the stage body.
  • Can be mounted directly on M6 or 1/4 inch type vibration isolators and optical laboratory tables.
  • The UU type can be mounted directly on a 1/4 inch vibration isolator or optical laboratory bench.
  • * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.

Spec

  • [

    common specification]
  • Table surface size: 120 x 120mm
  • Movement amount: ±20mm
  • Movement guide: Ball guide
  • Main material: Iron
  • Surface treatment: Super black chrome
  • Withstand load: 686N(70.0kgf)
  • Movement accuracy/straightness: 0.5μm
  • Movement accuracy/pitching: 25″
  • Movement accuracy/yawing: 15″
  • Permissible moment load/pitch: 49.0N・m
  • Permissible moment load/roll: 49.0N・m
  • Permissible moment load/yaw: 27.0N・m
  • Moment rigidity/pitch: 0.05″/N・cm
  • Moment rigidity/roll: 0.05″/N・cm
  • Moment rigidity/yaw: 0.06″/N・cm
  • Parallelism: 50μm
  • Movement parallelism: 25μm
  • Orthogonality: 10μm
  • [Individual specification]
  • Micro operation position: Center
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Mass: 3.1kg
  • RoHS conform product
