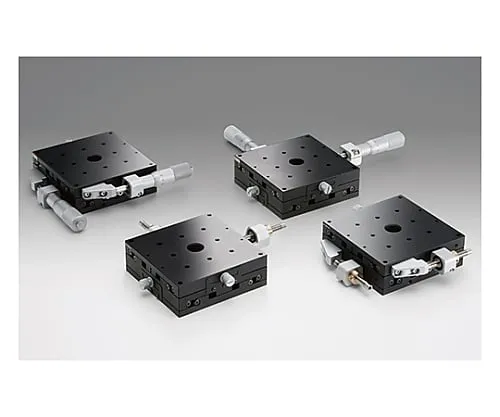

61-6968-42 XY Axis Steel Stage Size 100 x 100mm TSD-1002C
Product Description
Product Model: 61-6968-42Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6968-42
Product Brand: SIGMAKOKI CO., LTD.
Features
- This is a very durable XY axis direct movement stage with direct guide processing applied to the quenched steel stage body and moving table.
- Products with FP at the *** of the part number *** fine pitch screws.
- Please **** that this is not an ordinary micrometer head.
- When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
- The digital micrometer head (MHN2-25M) ***d in the TSD-1002CDG is made by Mitsutoyo.
- * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
-
[
common specification]
- Table surface size: 100 x 100mm
- Movement amount: ±12.5mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome
- Withstand load: 588N(60.0kgf)
- Movement accuracy/straightness: 0.5μm
- Movement accuracy/pitching: 25″
- Movement accuracy/yawing: 15″
- Permissible moment load/pitch: 35.0N・m
- Permissible moment load/roll: 35.0N・m
- Permissible moment load/yaw: 32.0N・m
- Moment rigidity/pitch: 0.09″/N・cm
- Moment rigidity/roll: 0.09″/N・cm
- Moment rigidity/yaw: 0.10″/N・cm
- Parallelism: 50μm
- Movement parallelism: 15μm
- Orthogonality: 10μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 2.6kg
- RoHS conform product
Related product recommendations
You may also be interested in the following products
Analyzer, Testing Equipment
61-0300-97 Disodium Hydrogen Phosphate Heptahydrate for Analysis Emsure(TM) ACS 106575 1kg 1.06575.1000
model: 61-0300-97
brand: Merck Millipore Corporation
Analyzer, Testing Equipment
62-8349-07 Opticap Gamma Compatible XL05 Millipore Express SHC 0.5 + 0.2μm 9/16in. HB/HB; 1/Pk KHGEG05HH1
model: 62-8349-07
brand: Sigma Aldrich Japan(Millipore)
Analyzer, Testing Equipment

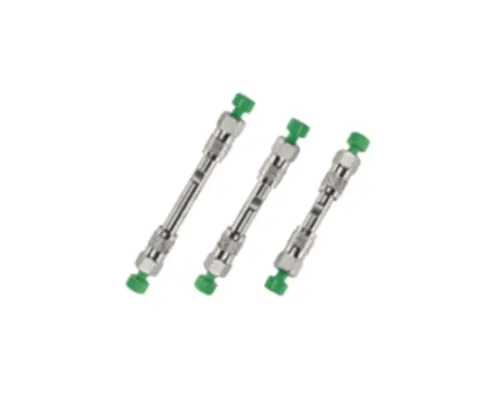

61-6429-60 ［Discontinued］COL-CTRGE ANALYTICAL CYANO 10 x 2.1mm PK N9303680
