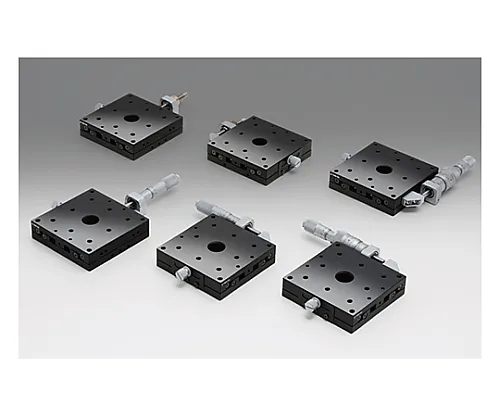

61-6968-11 X-Axis Steel Stage Size 80 x 80mm TSD-801C
Product Description
Product Model: 61-6968-11Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6968-11
Product Brand: SIGMAKOKI CO., LTD.
Features
- Quenched steel stage body and moving table are directly guided for extremely durable direct movement stage.
- Products with FP at the *** of the part number *** fine pitch screws.
- Please **** that this is not an ordinary micrometer head.
- When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
- * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
-
[
common specification]
- Table surface size: 80 x 80mm
- Movement amount: ±12.5mm (however ±6.5mm for SDM, SWP)
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome
- Withstand load: 490N(50.0kgf)
- Movement accuracy/straightness: 0.5μm
- Movement accuracy/pitching: 25″
- Movement accuracy/yawing: 15″
- Permissible moment load/pitch: 19.4N・m
- Permissible moment load/roll: 21.5N・m
- Permissible moment load/yaw: 19.5N・m
- Moment rigidity/pitch: 0.04″/N・cm
- Moment rigidity/roll: 0.02″/N・cm
- Moment rigidity/yaw: 0.04″/N・cm
- Parallelism: 20μm
- Movement parallelism: 7μm
- [Individual specification]
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 0.9kg
- RoHS conform product
