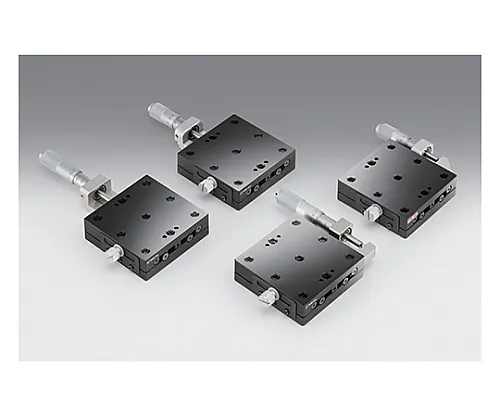

61-6967-38 x Axis Steel Stage-M6- Movement Amount/1 Rotation 0.5mm TSD-651C-M6
Product Description
Product Model: 61-6967-38Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6967-38
Product Brand: SIGMAKOKI CO., LTD.
Features
- Quenched steel stage body and moving table are directly guided for extremely durable direct movement stage.
- Stainless steel stage for vacuum (TSDS-651) is available.
- Both the fixing and moving table part taps of the stage body are stages using M6 or 1/4 inch bolts.
- Can be mounted directly on M6 or 1/4 inch type vibration isolators and optical laboratory tables.
- * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.
Spec
-
[
common specification]
- Table surface size: 65 x 65mm
- Movement guide: Ball guide
- Main material: Iron
- Surface treatment: Super black chrome
- Withstand load: 294N(30.0kgf)
- Movement accuracy/straightness: 0.5μm
- Movement accuracy/pitching: 25″
- Movement accuracy/yawing: 15″
- Permissible moment load/pitch: 13.2N・m
- Permissible moment load/roll: 14.7N・m
- Permissible moment load/yaw: 10N・m
- Moment rigidity/pitch: 0.08″/N・cm
- Moment rigidity/roll: 0.05″/N・cm
- Moment rigidity/yaw: 0.08″/N・cm
- Parallelism: 15μm
- Movement parallelism: 7μm
- [Individual specification]
- Movement amount: ±6.5mm
- Micro operation position: Center
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Mass: 0.6kg
- RoHS conform product
