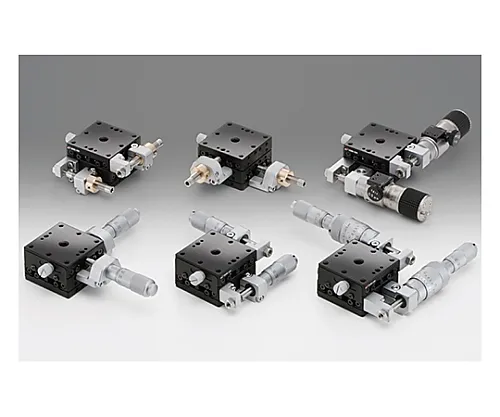

61-6966-83 XY Axis Steel Stage Size 40 x 40mm TSD-402C
Analyzer, Testing Equipment

61-6966-83 XY Axis Steel Stage Size 40 x 40mm TSD-402C

model: 61-6966-83
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6966-83Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6966-83
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is a very durable XY axis direct movement stage with direct guide processing applied to the quenched steel stage body and moving table.
  • Stainless steel stage for vacuum (TSDS-402) is available.
  • Products with FP at the *** of the part number *** fine pitch screws.
  • Please **** that this is not an ordinary micrometer head.
  • When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
  • * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
  • * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be possible to fix or secure the amount of movement.

Spec

  • [

    common specification]
  • Table surface size: 40 x 40mm
  • Movement amount: ±6.5mm
  • Movement guide: Ball guide
  • Main material: Iron
  • Surface treatment: Super black chrome
  • Withstand load: 196N(20.0kgf)
  • Movement accuracy/straightness: 0.5μm
  • Movement accuracy/pitching: 25″
  • Movement accuracy/yawing: 15″
  • Permissible moment load/pitch: 7.8N・m
  • Permissible moment load/roll: 7.8N・m
  • Permissible moment load/yaw: 5.0N・m
  • Moment rigidity/pitch: 0.5″/N・cm
  • Moment rigidity/roll: 0.5″/N・cm
  • Moment rigidity/yaw: 0.46″/N・cm
  • Parallelism: 30μm
  • Movement parallelism: 12μm
  • Orthogonality: 10μm
  • [Individual specification]
  • Micro operation position: Center
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Mass: 0.3kg
  • RoHS conform product
