Features

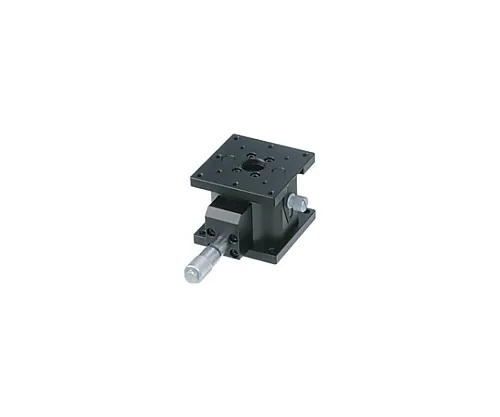

• A Z-axis stage that transmits horizontal micrometers to vertical movement.
• Products with FP at the *** of the part number *** fine pitch screws.
• Please **** that this is not an ordinary micrometer head.
• When operating with a screw pitch of 0.25 mm, a hexagonal wrench or an optional hexagonal wrench with knob (KCL) is required.
• Reference H010
• * Due to the structure, the springs in the stage may not be able to withstand the load and may stretch out. Therefore, it is not possible to install and *** the stage in the direction of reverse rotation.
• * Due to the structure applying the principle of leverage, there is a deviation (about ±0.02 mm per 0.5 mm/1 rotation of the micrometer head) in the feed amount relative to the scale dep***ing on the position of the moving amount.
