Features

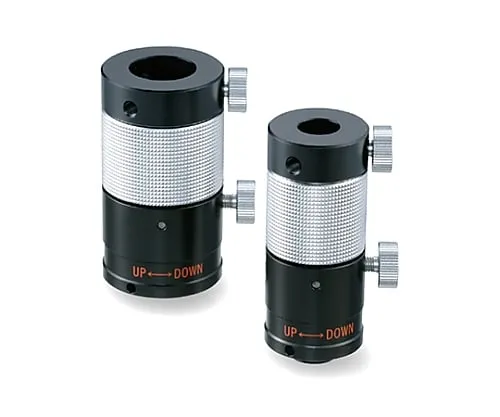

• Used for height and rotation coarse adjustment of holder with rod.
• By turning the height adjustment rotation part, it is possible to move 10 mm (about 5 mm/1 rotation) in the height direction.
• Insert the rod in the holder and secure it with two clamp screws on the side of the body.
• The upper clamp screws on the side of the body are for rod fixing, and the lower clamp screws are for height (helicoid ring) fixing.
• Helicoid screw type allows vertical movement without rotating the attached rod.
• * If the height adjustment rotating part is turned too much than the moving amount, it may be locked.
