Analyzer, Testing Equipment

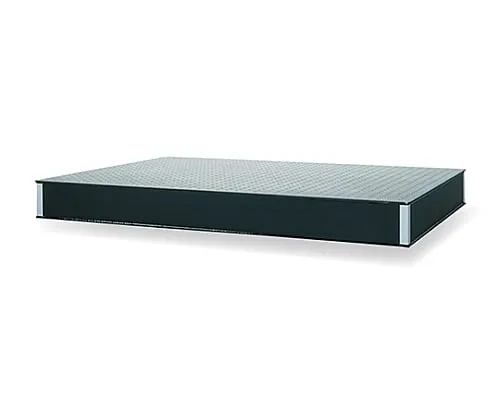

61-6961-30 Optical Laboratory Unit 1,000 x 700mm HA-107-100
Product Description
Product Model: 61-6961-30Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6961-30
Product Brand: SIGMAKOKI CO., LTD.
Features
- It is a simple type optical laboratory table that does not emphasize vibration isolation effect.
- The inside of the bench has a honeycomb core shape made of aluminum and is lightweight with excellent rigidity.
- It can be installed on an existing laboratory table, trestle, table, etc., or can be ***d for the installation of large equipment.
- The upper surface of the bench is a magnetized stainless steel plate with tap holes (M6 25 x 25 mm matrix) on the entire surface, so it can be built with either magnet type or screw-on type equipment or equipment.
- Vibration-proof rubber (PR) installed at four corners is available.
- * In order to fully demonstrate the performance, be sure to prepare anti-vibration rubber to be installed at the corners, and *** a robust trestle for the desk where the optical laboratory table is placed.
Spec
-
[
common specification]
- Honeycomb material inner bench: Aluminum
- Bench material (top plate): Magnetic Stainless Steel plate, thickness 5mm
- Bench material (side): Black vinyl leatherette bonded to plywood
- Bench material (lower panel): Regular steel plate (hot rolled steel plate), thickness 4.5mm
- Bench top: M6 tapped holes on 25 x 25mm matrix over the entire surface (leaving 25mm around the edges)
- Bench top surface finish: Unpainted (satin finish)
- [Individual specification]
- A x B: 1,000 x 700mm
- T: 100mm
- Mass: 57kg
- RoHS conform product
