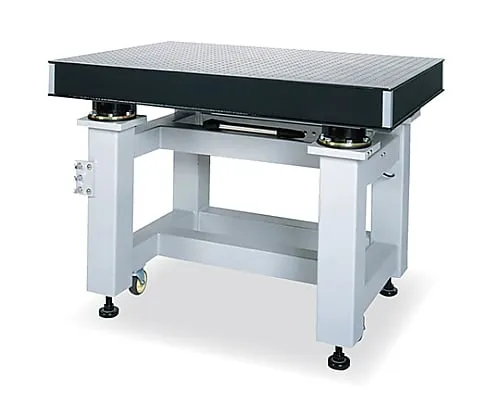

61-6960-38 Large Type Anti-Vibration Unit (Horizontal Level Automatic Type) 1,000 x 700mm HOA-107-100LA
Product Description
Product Model: 61-6960-38Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6960-38
Product Brand: SIGMAKOKI CO., LTD.
Features
- This is a standard large vibration isolator that ***s a "precision air spring" system for vertical vibration isolation.
- It is a vibration isolator that quickly attenuates vibration that is transmitted to the equipment and devices to be installed. It is indispensable as a mounting platform for equipment and devices that do not like the effect of vibration.
- The bench has a honeycomb core shape and is made of aluminum, so it is lightweight and has excellent rigidity.
- The upper surface of the bench is a magnetized stainless steel plate with tap holes (M6 25 x 25 mm matrix) on the entire surface, so it can be built with either magnet type or screw-on type equipment or equipment.
- Manual models are only available in sizes that allow workers to supply air using a hand air pump without strain.
- A quiet type silent compressor (PC-10H-S) that can be ***d indoors is available when the compressor is installed in a place where there is no air source.
- The watch may not function properly if it is loaded with an extremely biased load or equipment or equipment with an abnormally high center of gravity.
Spec
-
[
common specification]
- Natural frequency (vertical direction): About 1.5 - 1.75Hz
- Vibration prevention (vertical direction): Precision air spring
- Control method (vertical direction): Air damping by orifice
- Honeycomb material inner bench: Aluminum
- Bench material (top plate): Magnetic Stainless Steel plate, thickness 5mm
- Bench material (side): Black vinyl leatherette bonded to plywood
- Bench material (lower panel): Regular steel plate (hot rolled steel plate), thickness 4.5mm
- Bench top: M6 tapped holes on 25 x 25mm matrix over the entire surface (leaving 25mm around the edges)
- Bench top surface finish: Unpainted (satin finish)
- Features: Equipped with an auto level sensor, if the vertical balance of the mounting plate is disturbed due to a shifting load, it automatically restores to the set height.
- Air supply: Automatically supplied from air source (air compressor, Nitrogen gas cylinder, Factory air, etc.)
- Air supply air pressure: Primary pressure 0.3 ? 0.7MPa (about 3 - 7 kgf/cm2)
- Horizontal maintenance: Automatic adjustment by means of three auto level sensors
- Accessories: Automatic level sensor, Secondary regulator, Secondary air filter, One air tube (5m)
- *1MPa ? 10.197 kgf/cm2
- [Individual specification]
- Type: Automatic vertical leveling
- A x B: 1,000 x 700mm
- H: 750mm
- T: 100mm
- Weight installable weight: 1,471N (about 150 kgf)
- Mass: 135kg
- RoHS conform product
