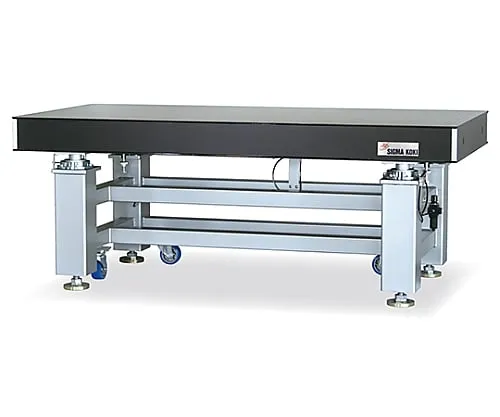

61-6960-19 High-Performance Large Type Anti-Vibration Unit (Horizontal Level Automatic Type) 1,200 x 900mm TDI-129-100LA
Analyzer, Testing Equipment

61-6960-19 High-Performance Large Type Anti-Vibration Unit (Horizontal Level Automatic Type) 1,200 x 900mm TDI-129-100LA

model: 61-6960-19
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6960-19Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6960-19
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is the highest performance vibration isolator with high vibration isolation effect in both vertical and horizontal directions, beca*** horizontal vibration isolation is carried out by the three-dimensional vibration isolation method using the "universal mechanism (applying the p***ulum principle)" and vertical vibration isolation is carried out by the "precision air spring."
  • It is a vibration isolator that quickly attenuates vibration that is transmitted to the equipment and devices to be installed. It is indispensable as a mounting platform for equipment and devices that do not like the effect of vibration.
  • The bench has a honeycomb core shape and is made of aluminum, so it is lightweight and has excellent rigidity.
  • The upper surface of the bench is a magnetized stainless steel plate with tap holes (M6 25 x 25 mm matrix) on the entire surface, so it can be built with either magnet type or screw-on type equipment or equipment.
  • Manual models are only available in sizes that allow workers to supply air using a hand air pump without strain.
  • A quiet type silent compressor (PC-10H-S) that can be ***d indoors is available when the compressor is installed in a place where there is no air source.
  • The watch may not function properly if it is loaded with an extremely biased load or equipment or equipment with an abnormally high center of gravity.

Spec

  • [

    common specification]
  • Natural frequency (vertical direction): Approximately 1.3Hz
  • Natural frequency (horizontal direction): Approximately 0.5Hz
  • Vibration prevention (vertical direction): Precision air spring
  • Vibration prevention (horizontal direction): Universal mechanism
  • Control method (vertical direction): Air damping by orifice
  • Control method (horizontal direction): Damping with special rubber
  • Honeycomb material inner bench: Aluminum
  • Bench material (top plate): Magnetic Stainless Steel plate, thickness 5mm
  • Bench material (side): Black vinyl leatherette bonded to plywood
  • Bench material (lower panel): Regular steel plate (hot rolled steel plate), thickness 4.5mm
  • Bench top: M6 tapped holes on 25 x 25mm matrix over the entire surface (leaving 25mm around the edges)
  • Bench top surface finish: Unpainted (satin finish)
  • Features: Equipped with an auto level sensor, if the vertical balance of the mounting plate is disturbed due to a shifting load, it automatically restores to the set height.
  • Air supply: Automatically supplied from air source (air compressor, Nitrogen gas cylinder, Factory air, etc.)
  • Air supply air pressure: Primary pressure 0.3 ? 0.7MPa (about 3 - 7 kgf/cm2)
  • Horizontal maintenance: Automatic adjustment by means of three auto level sensors
  • Accessories: Automatic level sensor, Secondary regulator, Secondary air filter, One air tube (5m)
  • *1MPa ? 10.197 kgf/cm2
  • [Individual specification]
  • Type: Automatic vertical leveling
  • A x B: 1,200 x 900mm
  • H: 750mm
  • T: 100mm
  • Weight installable weight: 1,961N (about 200 kgf)
  • Mass: 192kg
  • RoHS conform product
