61-6959-01 Lens Positioner LACR-4H
Analyzer, Testing Equipment

61-6959-01 Lens Positioner LACR-4H

model: 61-6959-01
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6959-01Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6959-01
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This objective lens positioner achieves both high performance and low cost through its unique positioning technology and processing technology cultivated through the production of stages, etc.
  • We propose a lens positioner that is ideal for production equipment and inspection equipment that require high throughput.

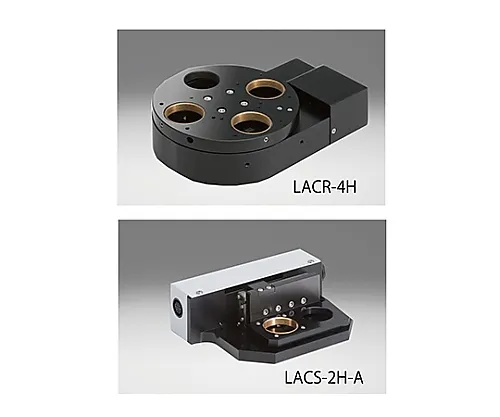

  • < Electric Revolver: LACR-4H>
  • This electric revolver has improved durability by making the positioning stop method of the objective lens non-click (non-contact).
  • A stepping motor is ***d as the driving method, and it is possible to operate with a resolution of μm or less at the tip of the objective lens.
  • By combining the 5 point teaching function (positioning adjustment in the direction of rotation) of the dedicated controller (GIP-101) and the centering adjustment mechanism of the main body, the center of the objective lens can be adjusted.
  • A separate connection adapter is required for installation in an observation unit with coaxial lighting.
  • < Lens switching slider: LACS-2H-A>
  • The number of objective lens switches is limited to 2, and the switching mechanism ***s a sliding system.
  • Since it ***s a sliding system, it has become compact and the switching time has been shortened for electric revolvers.
  • A separate connection adapter is required for installation in an observation unit with coaxial lighting.

Spec

  • Objective lens switching number of pieces: 4 holes (90° x 4) (standard 1 place, Unidirectional core with an adjustment mechanism hole 3 places)
  • Movement amount: ∞ to clocks, counterclockwise direction
  • Motor: 5 phase stepping motor (0.75A/phase)
  • Instruction guide: Bearing system
  • Feed mechanism: Worm and worm wheel
  • Movement amount of 1 pulse: 0.01° (FULL)/0.0002° (50 division)
  • Table 1 rotation total pulse count: 36,000 pulse (FULL)
  • Repeat positioning accuracy: 0.02° or less
  • Switching repetition reproducibility: ±3μm or less (at the tip of objective lens)
  • Maximum transfer speed (switching): 60°/sec (A=>B, About 2.0 sec)
  • Objective lens mounting: M26P=0.706
  • Loading weight: 2kg
  • Mass: 0.85 kg
