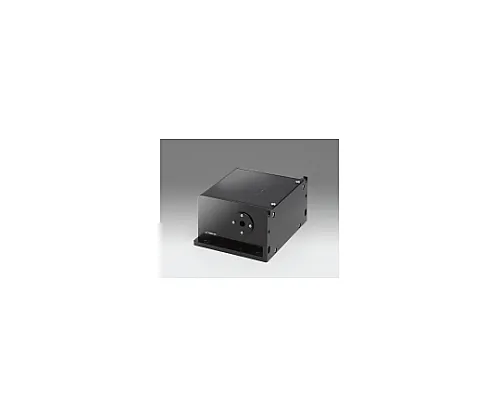

61-6958-72 Variable Attenuator (High Output Type) 266Nm SVAB-266A-08
Analyzer, Testing Equipment

61-6958-72 Variable Attenuator (High Output Type) 266Nm SVAB-266A-08

model: 61-6958-72
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6958-72Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6958-72
Product Brand: SIGMAKOKI CO., LTD.

Features

  • The light quantity of the high-power laser can be continuously varied, and high transmittance stability can be obtained.
  • Using the polarization characteristics of the laser beam, the transmitted light quantity of the CW/pulse laser is continuously variable.
  • Laser light that is not transmitted is safely absorbed by the diff***r and released as heat.
  • The effect of heat generation of the diff***r on the transmitted light quantity is very small.
  • Various controllers for remote operation (sold separately)
  • The exit polarization direction can be changed to horizontal or vertical by changing the installation surface.
  • Please inquire about the controller for remote operation.

Spec

  • [

    common specification]
  • Incident effective diameter: φ8mm
  • Incident beam diameter*: φ4mm *provisions in the diameter of Gaussian beam was measured at 1/e2 strength of peak value. To permeate the whole area of Gaussian distribution, Requires effective diameter 2 times of the incident beam diameter.
  • Correspondence output: 20W
  • [Individual specification]
  • Adaptive wavelength: 266nm
  • Laser durability: 1.0J/cm2
  • Transmittance adjustment range: 2 - 88% (dep***s on the polarization states of the laser beam)
