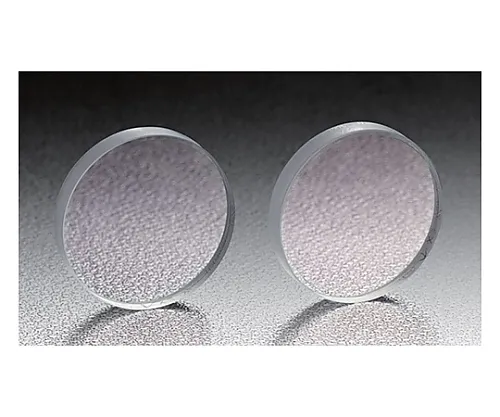

61-6949-91 Super Mirror 532nm φ12.7mm TFHSM-12.7C06-532
Analyzer, Testing Equipment

61-6949-91 Super Mirror 532nm φ12.7mm TFHSM-12.7C06-532

model: 61-6949-91
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6949-91Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6949-91
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Fabry-Perot resonators (cavities) are ***d to obtain the ultimate accuracy of distance and time using light.
  • In order to improve the performance of this resonator, the super mirror is an ultra-high performance mirror with the reflectivity as close as possible to 1.
  • Dense, defect-free, high-quality films have been deposited using ion beam sputtering (IBS).
  • Using a special polishing technique, we *** a low scattering substrate with a surface roughness of Ra0.1nm or less.
  • We have achieved a reflective film with a reflectivity of 99.999% through our long-established film design technology.
  • The scattering loss due to the substrate and film is very small, and very narrow spectral width and high finesse can be expected when the cavity is constructed.
  • Available in 2 types with wavelengths of 532 nm and 1064 nm.
  • * When the mirror is ***d alone, it does not transmit due to its high reflectivity.
  • * In order to *** the transmitted light, please assemble the cavity before ***.
  • * Handle and measure the mirror in a clean environment.
  • * Trash, dust, and even trace amounts of gas in the air can greatly affect the measured value.
  • * If the cavity is composed of two flat mirrors, the output from the cavity may become unstable.
  • * If you are configuring a stable cavity, make sure that one or both of them are concave mirrors.

Spec

  • [

    common specification]
  • Material: Synthetic quartz
  • Shape: Flat surface substrate
  • Parallelism: <5″
  • Substrate surface accuracy: λ/10
  • Coating: Surface, dielectric multi-layered high reflective coat, Back, dielectric multi-layered reflective prevention coat
  • Incident angle: 0°
  • Reflective prevention film: R<0.15%
  • Effective diameter: 80% of the outer diameter
  • Scratch - dig: 10-5
  • [Individual specification]
  • Adaptive wavelength: 532nm
  • Outer diameter φD: φ12.7mm
  • Thickness t: 6mm
  • Reflective ratio: 99.995% (Even though the reflective rate is measured using CRD, it can vary dep***ing on the measuring method and measurement conditions. )
  • Loss: 20ppm (This value wave is reference data. Data will not be attached to the product. )
  • RoHS conform product
