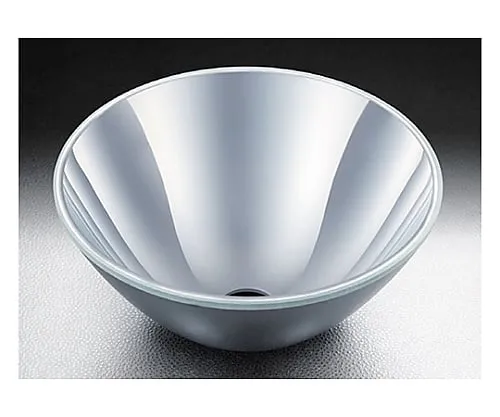

61-6949-76 Ellipsoidal Mirror 64mm TCEA-64C-11/78-SH18
Analyzer, Testing Equipment

61-6949-76 Ellipsoidal Mirror 64mm TCEA-64C-11/78-SH18

model: 61-6949-76
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6949-76Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6949-76
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A ray passing through one focus of a two-point ellipse is reflected in the ellipse plane and passes through the other focus.
  • Using this principle, you can place a light source in one focus to focus light on the other.
  • It is ***d when the light of a lamp enters an optical fiber or a light guide.
  • High light collection performance is obtained by precise aspherical processing.
  • The aluminum coating has a protective coating that is resistant to scratches, so it can be ***d stably for a long time.
  • You can choose a mirror that matches your specifications from a wide variety of mirrors classified by outer diameter and focal point.
  • Tempax (R) is a registered trademark of SCHOTT AG.
  • A parabolic mirror (TPCA) is also available to project the light of the first focus at infinity.
  • * When using a directional light source, light cannot be foc***d to the second focal point beca*** light rays are not reflected on the mirror surface.
  • * The luminance distribution may become a ring-shaped distribution when it is far from the second focal point.

Spec

  • [

    common specification]
  • Material: TEMPAX(R)
  • Coating: Al+SiO 2
  • [Individual specification]
  • Outer diameter φD: 64mm
  • Thickness H: 44mm*
  • Hole diameter φC: φ18mm
  • Ma: 31mm
  • Mb: 36mm
  • First focus distance A: 11
  • Second focus distance B: 78
  • *The actual products have individual differences in design values. (Not a guaranteed value)
  • RoHS conform product
