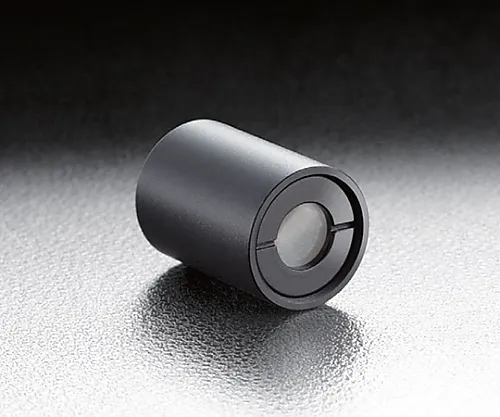

61-6949-64 Roshon Polarizing Prism 200 - 2300nm RSPCQ-10
Product Description
Product Model: 61-6949-64Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6949-64
Product Brand: SIGMAKOKI CO., LTD.
Features
- Polarizer that separates incident light into orthogonal linearly polarized light.
- It supports a wide range of wavelength bands from ultraviolet to infrared.
- The emitted P-polarized light travels straight without displacing the optical path, and the S-polarized light emits with a certain separation angle.
- We have RSPCQ-10 made of quartz and RSPMF-10 made of MgF2 single crystal that supports DUV and wider bandwidth.
- * When the incident angle changes, the extinction ratio of the linearly polarized light of the transmitted light also changes.
Spec
-
[
common specification]
- Beam polarization angle (P polarized light): ＜3′
- Wavefront accuracy: λ/4
- Coating: No coat
- Laser durability: 0.3J/cm2 (pulse width: 10ns)
- Scratch - dig: 20-10
- Protection frame material: Aluminum (surface treatment: Black anodic oxide)
- [Individual specification]
- Material: Crystal
- Adaptive wavelength: 200 - 2300nm
- Extinction ratio: ＜2 x 10＾-4
- Separation angle: 1 - 1.5°
- φA: φ10mm
- φD x L: φ25.4 x 28mm
