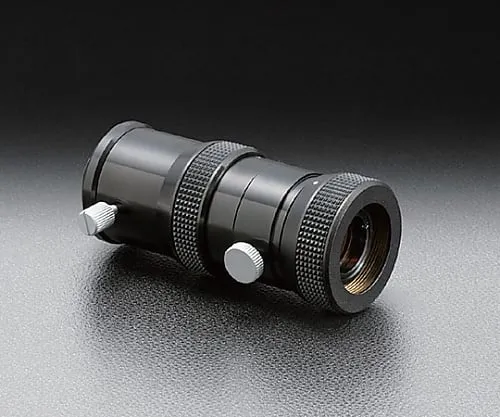

61-6949-39 High-Power Zoom Type Laser Beam Expander BEZHP-1/3-532
Analyzer, Testing Equipment

61-6949-39 High-Power Zoom Type Laser Beam Expander BEZHP-1/3-532

model: 61-6949-39
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6949-39Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6949-39
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Zoom-type laser beam expander for high power variable up to 1~3 times.
  • The diopter correction function allows fine adjustment of collimation.
  • It can be ***d for high-precision optical systems such as interferometers and laser machining by lens design that takes wavefront aberration into consideration.
  • The optical system of the beam expander has an air gap configuration without gluing lenses together. This allows it to be ***d with high-power lasers.
  • The Galileo lens configuration reduces the number of aberration correction lenses and shortens the total length of the beam expander.
  • By turning the diopter ring in the center of the beam expander, you can change the beam from foc***d to collimated to divergent.
  • Use this when you need a strict collimating adjustment or when you want to change the position of the beam waist.
  • Laser beam expander holder (BE-M22 H, BE-M34 H) with fine aori adjustment to fix the beam expander is available.
  • * The beam expander cannot be ***d in the opposite direction to produce collimated light with reduced beam diameter.
  • * Determine the divergence angle of the laser beam and the position of the beam waist, and *** an appropriate optical system.

Spec

  • Variable magnification: x 1 - x 3
  • Design wavelength: 532nm
  • Incident effective diameter: φ5mm
  • Laser durability *: 5.0J/cm2 *laser pulse width 10ns, Repeat frequency 20Hz
  • Coating: Multi-layered reflective prevention film
  • Material: Synthetic quartz
  • Mass: 0.3kg
  • RoHS conform product
