Features

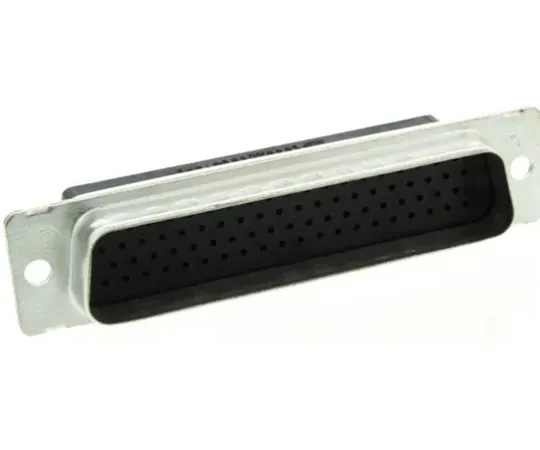

• UL listed, CSA certified. For 15, 26 and 62 way ‘D ‘ plan forms refer to stock no ; 481-443 481-443. AMPLIMITE D-Sub Cable Connector, HDP-22 Series, Crimp Snap-In Contact. AMPLIMITE HDP-22 series crimp snap-in contact cable mount d-sub connectors with tin plated steel shells and 94V-0 black thermoplastic inserts. These AMPLIMITE HDP-22 series crimp snap-in contact high density d-sub cable connectors are available with grounding indents or clinch nuts (please refer to table for details) and mate with any size 22 d-sub connector dimensionally complying with MIL-C-C24303. The size 22 DF contacts for these AMPLIMITE HDP-22 Series crimp snap-in d-sub cable connectors must be ordered separately, for pin contacts see stock number ; 680-9692 680-9692 typically, for socket contacts see stock number ; 718-1207 718-1207 typically. For insertion and extraction tool see stock number ; 446-822 446-822 , for hand crimping tool see stock number ; 314-8032 314-8032 (PRO-CRIMPER II). For suitable cable clamps or backshells for these AMPLIMITE HDP-22 series crimp snap-in contact d-sub cable connectors see stock numbers ; 450-9113 450-9113 , ; 450-9157 450-9157 and ; 680-9327 680-9327 typically. Ferrules also need to be purchased separately, see stock numbers ; 301-8199 301-8199 and ; 717-4669 717-4669 typically. Approximately 65% higher density than HD-20 connectors Space saving Dimensionally comply with MIL-C-24308 15 way contacts contained within a conventional 9 way shell 26 contacts contained within a conventional 15 way shell 44 contacts contained within a conventional 25 way shell 62 contacts contained within a conventional 37 way shell
