Features

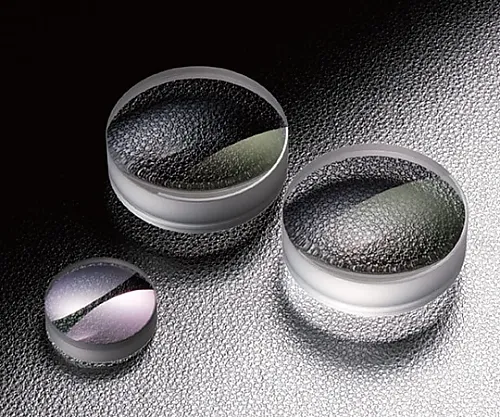

• By combining two lenses with different refractive index wavelength dispersion into a single lens, chromatic aberration and spherical aberration can be reduced compared to a single spherical lens.
• It can be ***d as a condenser lens for near infrared LD or YAG laser (1064 nm).
• Optimization by lens design results in little change in focal length in the near infrared.
• The focal lengths of 700 nm, 880 nm, and 1100 nm match and are optimized to minimize aberration.
• Since not only chromatic aberration but also spherical aberration is well corrected, it is ideal as a collimating lens for laser.
• It is corrected not only for aberrations of the on-axis object point, but also for off-axis coma and astigmatism.
• Air gap type condensing lens (NYTL/NYDL) for laser processing is also available.
• * Use an achromatic lens when you want to focus an image at infinity or when you want to *** a point light source that is parallel to the image.
• Sufficient optical performance cannot be obtained when the camera is ***d for close-range imaging.
• * The chromatic lens has an orientation that allows parallel light to enter the lens.
• * This function allows parallel light to enter from the side of the face with a small radius of curvature (the face pointed to by the arrow).
• * When parallel light is incident from the opposite side, chromatic aberration and spherical aberration occur, and the condensing spot becomes larger.
• Chromatic aberration and spherical aberration increase when the camera is ***d in the visible range. Also, the transparency may be poor.
