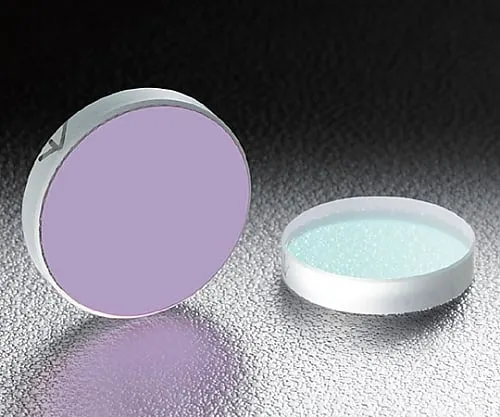

61-6949-23 Notch Filter Cutoff Wavelength 355nm NF-25C05-27-355
Analyzer, Testing Equipment

61-6949-23 Notch Filter Cutoff Wavelength 355nm NF-25C05-27-355

model: 61-6949-23
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6949-23Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6949-23
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Unlike interference filters, which transmit only specific wavelengths, notch filters are filters that cut only specific wavelengths.
  • The *** of dielectric multilayer coatings provides extremely high environmental resistance and stability.
  • Available in 4 types for 355 nm, 532 nm, 633 nm and 1064 nm.
  • Beca*** of the dielectric multilayer coating, the film absorbs very little light.
  • It can also be ***d as a filter set for bioimaging by combining it with other filters.
  • * Transmittance wavelength characteristics may change when ***d at angles other than 0°. (In general, the larger the incident angle, the more the wavelength characteristic shifts toward the shorter wavelength.)
  • * The notch filter is designed to withstand high temperatures. However, safety and filter performance cannot be guaranteed if the notch filter is placed near a lamp (mercury lamp) that emits strong heat rays.

Spec

  • [

    common specification]
  • Material: Synthetic quartz, BK7
  • Coating: Dielectric multi-layered film (both sides)
  • Scratch - dig: 60-40
  • Effective diameter: 90% of the outer diameter
  • [Individual specification]
  • Cut wavelength: 355nm
  • Optical density OD: >4
  • Transmittance band wavelength: 320 - 335nm, 375 - 500nm
  • Transmittance: Average 90%
  • Half width: 27±2.7nm
  • Material: Synthetic quartz
  • RoHS conform product
