61-6949-06 Parabolic Lens Of Internal Reflection Type CPC-14.24C29.02-P
Analyzer, Testing Equipment

61-6949-06 Parabolic Lens Of Internal Reflection Type CPC-14.24C29.02-P

model: 61-6949-06
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6949-06Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6949-06
Product Brand: SIGMAKOKI CO., LTD.

Features

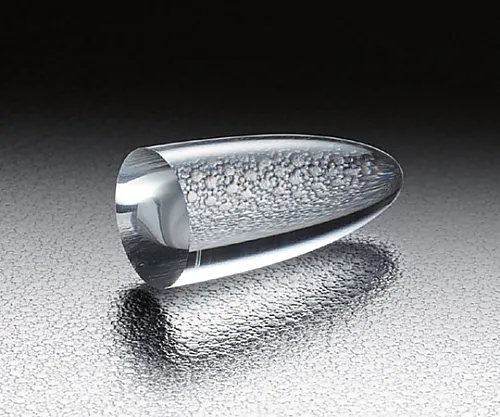

  • The internal reflection type paraboloid lens is an optical element that can collect light on the exit *** surface by reflecting light entering from various directions on the streamlined side surface.
  • It is ***d as a solar cell concentrator.
  • As long as the light is parallel with an incident angle of 25° or less, the light can be efficiently collected at the exit *** surface regardless of the direction of the incident.
  • The *** of glass internal reflections simplifies the configuration compared to the lens system.
  • By using the press molding technology of glass lenses, both high performance and low cost have been realized.
  • * The reflectivity is extremely poor if fingerprints or dirt are attached to the side surface (aspherical surface) beca*** the reflectivity is totally reflected.
  • * Reflectivity of the side surface is more than 99%, but reflection loss of about 4% each occurs beca*** the incoming and outgoing surfaces are not coated with anti-reflection coating.
  • * Light emitted from the *** surface does not converge to a single point and diverges widely and randomly.
  • * For this reason, it cannot be ***d for concentrated beams or collimated beams.

Spec

  • [

    common specification]
  • Material: B270(R) equivalent product
  • Coating: No coat
  • Allowable light-receiving angle: 25°
  • Scratch - dig: End faces: 80-50, Sides (nonspherical surface): 160-50
  • [Individual specification]
  • Product name: Internal reflective type parabolic lens
  • RoHS conform product
