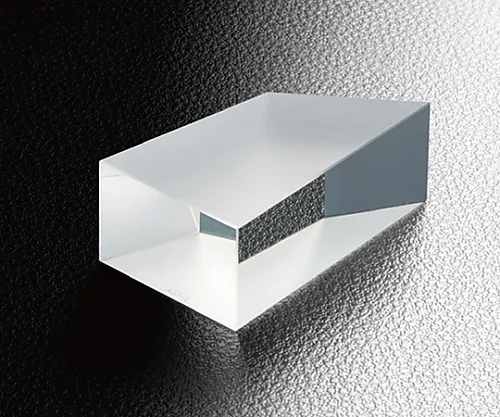

61-6948-91 Pellin Broca Prism PBPQ-30L20-10
Product Description
Product Model: 61-6948-91Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6948-91
Product Brand: SIGMAKOKI CO., LTD.
Features
- Perrin Brocker Prism is a kind of Brewster Dispersion Prism, which has a characteristic of emitting at right angles to the direction of incidence.
- When the YAG laser is injected at the Brewster angle, the fundamental wave (1064 nm) and the double wave (532 nm) can be separated.
- Beca*** the Brewster angle and critical angle are ***d, there is no loss due to reflection, resulting in high transmittance.
- The Perambrocka prism has no coating and can be ***d with high-energy pulsed lasers.
- Use to match the angle at which the light intensity of the fundamental (invisible) or double (green) YAG beam reflected at the prism incidence plane is minimized (Brewster angle).
- Convert the polarization direction of the laser beam so that it is parallel to the bottom of the prism.
- It can also be ***d for the spectroscopy of Ar laser with multi-wavelength oscillation.
- * The emission beam of the ultraviolet wavelength is not reflected beca*** it deviates from the Brewster angle.
- * It can also be ***d as a non-polarized dispersion prism, but it will not emit light at right angles to the angle of incidence unless it is made incident at the Brewster angle.
- * Spectroscopy is possible even when an S-polarized laser beam is injected, but reflection loss occurs at the incident and outgoing surfaces.
- * Fingerprints and dirt on the uncoated surface will prevent total reflection and no reflection.
- * Do not let anything come in contact with the no-coat surface.
- * Measured dimensions A and B include chamfers, so they are slightly shorter.
- * The tolerance is defined at the intersection of each face without chamfers.
Spec
-
[
common specification] - Material: Synthetic quartz
- Design wavelength: 706nm (midway between 1063nm to 532nm)
- Angle accuracy: <3′
- Base material surface accuracy: λ/10
- Scratch - dig: 20?10
- Effective range: Ellipse inscribed in a rectangular of 90% of the dimensions
- [Individual specification]
- A: 30mm
- B: 50mm
- C: 20mm
- θ1: 56.13°
- θ2: 79.5°
- RoHS conform product
