61-6948-50 Frameless Beamsplitter Unit 400-700nm GBSMU-49-VIS
Analyzer, Testing Equipment

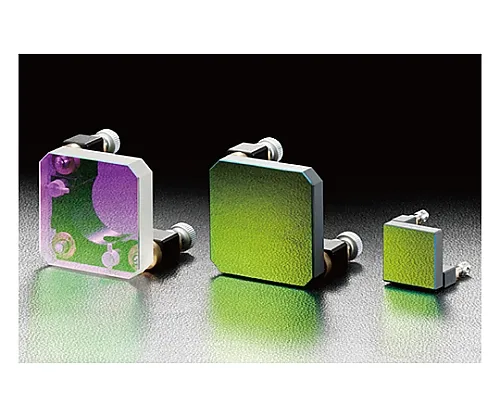

61-6948-50 Frameless Beamsplitter Unit 400-700nm GBSMU-49-VIS

model: 61-6948-50
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6948-50Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6948-50
Product Brand: SIGMAKOKI CO., LTD.

Features

  • The frame of the mirror holder has been removed and the front of the holder has been completely mirrored.
  • High precision polishing of ceramics with a low coefficient of thermal expansion on the substrate provides extremely high surface accuracy and temperature stability.
  • We have a lineup that can be ***d for various wavelengths of YAG lasers.
  • As for the mirror type, since the dielectric multilayer film is coated on high-precision polished ceramic, it is not so different from the dielectric multilayer film mirror coated on glass.
  • The effective area of the mirror has been expanded to the limit, and a compact mirror adjustment mechanism has been realized.
  • Since the reflected wavefront does not collapse due to temperature change, it is ideal for precise optical systems.
  • This product guarantees surface accuracy after coating (holder condition).
  • High laser capacity and can be ***d with high-power lasers.
  • This product was patented by the company in November 2011.
  • The mounting method to the base is the same as the MHG mirror holder.
  • Can be attached to post stand PST -** (sold separately) and rod RO -** (sold separately).
  • * Reflectance wavelength characteristics of dielectric multilayer films vary dep***ing on the polarization state of the incident beam.
  • * P-polarized light has a lower reflectivity and a narrower reflection band than S-polarized light.
  • * The reflectance of the specification is expressed as the average value of the reflectance of P-polarized light and S-polarized light.
  • Reflectance may be low when ***d at angles other than 45°.
  • Reflectivity may be low when the watch is ***d at wavelengths other than the adaptive wavelength.
  • * Surface accuracy guarantee data is not attached to the product.

Spec

  • [

    common specification]
  • Holder section, product number: GBSMU-49
  • Holder section, number of movable axes: 2 axes
  • Holder section, adjustment range (tilt): ±2°
  • Holder unit, adjustment range (rotation): ±2°
  • Holder section, resolution (tilt): 0.26°/rotation
  • Holder section, resolution (rotation): 0.26°/rotation
  • Holder section, main material: Aluminum
  • Holder section, surface treatment: Black anodic oxide
  • Holder section, weight: 0.16kg
  • Mirror part, optics type: Beamsplitter
  • Mirror part, material: Synthetic quartz
  • Mirror part, incident angle: 45°±3°
  • Mirror part, surface accuracy after coating: Reflective wavefront λ/10
  • Mirror part, scratch - dig: 20?10
  • Mirror part, reflective rate: Average 50 ±5%
  • [Individual specification]
  • Adaptive wavelength: 400 - 700nm
  • Mirror part shape: 49 x 49 x 12mm
  • Coat range: 48 x 48mm
  • Surface accuracy guaranteed range: φ30mm
  • Transmittance effective diameter: φ20mm
  • Laser durability *: 2.1J/cm2
  • RoHS conform product
