61-6947-97 Holder Attached Surface Accuracy Guaranteed Mirror 248nm Optics Diameter 12.7mm HTFM-12.7C08-248-MHG-MP
Analyzer, Testing Equipment

61-6947-97 Holder Attached Surface Accuracy Guaranteed Mirror 248nm Optics Diameter 12.7mm HTFM-12.7C08-248-MHG-MP

model: 61-6947-97
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6947-97Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6947-97
Product Brand: SIGMAKOKI CO., LTD.

Features

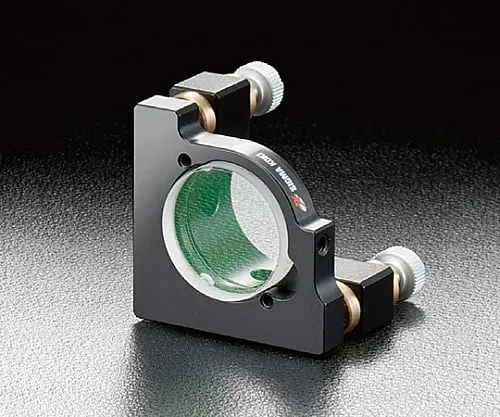

  • This is a highly reflective mirror with an adjustment mechanism, in which a surface accuracy guaranteeing mirror (HTFM) is set in a kinematic mirror holder and bonded so as not to apply stress to the mirror.
  • This product guarantees the surface accuracy of the mirror after incorporating and bonding the mirror to the holder.
  • There are two types of mirror holders: high-stability type (MHG-HS) and mass-produced type (MHG-MP).
  • This product can be ***d to configure optical systems, interferometers, etc. that require high wavefront accuracy.
  • The mass-produced model (MHG-MP) has an adjustment screw locking mechanism.
  • Can be attached to rod RO -** (sold separately) or post stand PS -** (sold separately).
  • The reflectance wavelength characteristic is shown in the graph of the Surface Accuracy Guarantee Mirror (HTFM).
  • * The mirror surface comes out 2 mm in front of the holder mounting surface.
  • * Once the glued mirror is removed, the surface accuracy of the mirror is not guaranteed.
  • * If a strong impact is applied to the holder or mirror, the surface accuracy of the mirror may be deteriorated.
  • * The center of rotation of the mass-produced type (MHG-MP) is located outside the mirror (the fulcrum of the holder).
  • * Use the rod mounting plate (MHG -** BPRO) when fixing the Takayasu standard (MHG-HS) to a flat surface.
  • * The optical axis is 10 mm higher when using the rod mounting plate (MHG -** BPRO).
  • * Surface accuracy guarantee data is not attached to the product.

Spec

  • [

    common specification]
  • Holder section, number of movable axes: HTFM-MHG-HS : 3 axes, HTFM-MHG-MP: 2 axes (HTFM-12.7C08-MHG-MP: 3 axes)
  • Holder section, main material: Aluminum (HTFM-12.7C08-MHG-MP: Brass)
  • Holder section, surface treatment: Black anodic oxide (HTFM-12.7C08-MHG-MP: Super black chrome)
  • Mirror part, material: Synthetic quartz
  • Mirror part, coating: Dielectric multi-layered film
  • Mirror part, incident angle: 45°±3°
  • Mirror part, surface accuracy: After holder adheres λ/10
  • Mirror part, scratch - dig: 10?5
  • Mirror part, effective diameter: 80% of the outer diameter
  • Mirror part, back: Optical polishing
  • [Individual specification]
  • Adaptive wavelength: 248nm
  • Optics diameter φD: φ12.7mm
  • Reflective ratio: >99.2%
  • Holder product number: MHG-MP12.7
  • Adjustment range (tilt): ±3°
  • Adjustment range (rotation): ±3°
  • Resolution (tilt): Approximately 0.74°/rotation
  • Resolution (rotation): Approximately 0.74°/rotation
  • Mass: 0.04kg
  • RoHS conform product
