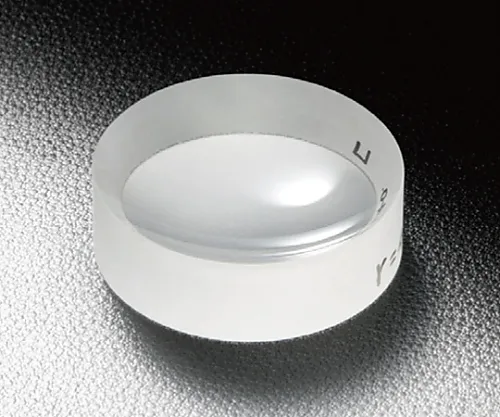

61-6938-83 Concave Mirror Substrate φ10mm Center Thickness 3.7mm Focal Length 5mm TCBS-10C05-10
Analyzer, Testing Equipment

61-6938-83 Concave Mirror Substrate φ10mm Center Thickness 3.7mm Focal Length 5mm TCBS-10C05-10

model: 61-6938-83
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6938-83Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6938-83
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Concave substrate capable of depositing film coating of various types of total reflection mirrors.
  • We also have concave mirrors coated with aluminum in advance.
  • It can be ***d as the primary mirror of a reflecting telescope or as a reflector of a collimated optical system of a lamp light source.
  • Select according to your specifications from a wide range of variations, subdivided by outer size and radius of curvature.
  • It is machined with higher surface accuracy than a flat concave lens (SLB-N).
  • A laser concave mirror substrate (LCBS) with high surface accuracy is also available for *** in laser resonator mirrors.
  • * Since the back side is sandy, it cannot be ***d for transmission.
  • * Use a concave lens (SLB-N) for transmission.
  • * When using for cold mirror or partial reflection mirror, it is necessary to *** a concave substrate with a mirror surface on the back side.
  • * When a high-energy pulsed laser beam is injected, a spark is generated near the focal point and the wavefront is disturbed.
  • * The outer edge of the concave surface is chamfered, and the thickness of the cover (te) may vary. Therefore, *** the back side as the reference surface.

Spec

  • [

    common specification]
  • Material: BK7
  • Sphere surface surface accuracy: λ/2
  • Curvature half diameter error: ±2%
  • Coating: No coat
  • Effective range: 85% of outer diameter
  • Scratch - dig: Board: 20?10
  • Back: Sand surface
  • [Individual specification]
  • Coating: No coat
  • Outer diameter φD: φ10mm
  • Edge thickness te: 5mm
  • Center thickness tc: 3.7mm
  • Curvature half diameter r: 10mm
  • Focus distance f: 5mm
  • RoHS conform product
