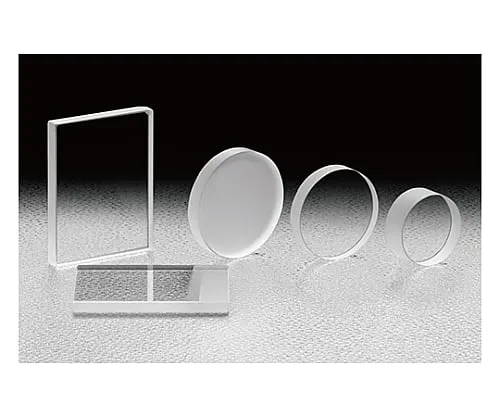

61-6935-02 Optical Parallel (Circle) φ10mm Thickness 1mm Surface Flatness λ/10 OPSQ-10C01-10-5
Product Description
Product Model: 61-6935-02Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6935-02
Product Brand: SIGMAKOKI CO., LTD.
Features
- Both sides of the glass substrate are polished in parallel.
- It can be ***d as a substrate for coating evaporated films with custom beam splitters, windows, etc.
- A BK7 type parallel planar substrate that can be ***d in the visible and infrared regions.
- For those with a high degree of parallelism, the angle of the transmitted beam does not change when a parallel plane substrate is inserted perp***icularly into the optical path of the laser.
- High surface accuracy can also be ***d as an alternative to Newton's original.
- Wedge boards (WSB/WSSQ/WSSQK) are also available to prevent backside reflections.
- * The parallel plane substrate loses 10% due to the reflection of the front and back surfaces.
- * Surface accuracy guarantee data is not attached to the product.
Spec
-
[
common specification] - Material: Synthetic quartz
- Effective range: 90% of the outer diameter
- Scratch - dig: 20?10
- [Individual specification]
- Outer diameter φD: φ10mm
- Thickness t: 1mm
- Surface accuracy: λ/10
- Parallelism: <00′05″
- RoHS conform product
