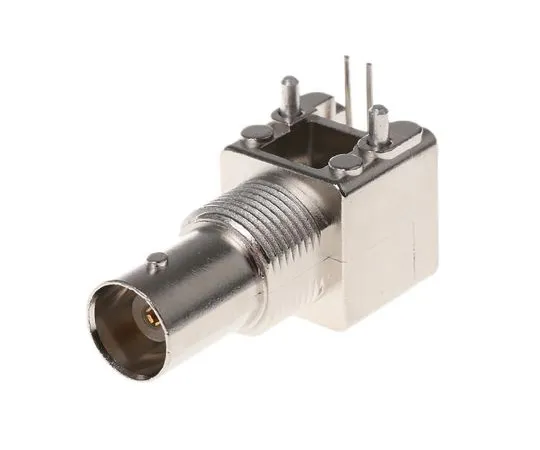

63-4948-70 TE Connectivity Right Angle 50Ω PCB Mount Bulkhead Fitting BNC Connector, jack, Nickel, Through Hole Termination 5227677-1
model:
63-4948-70
brand:
TE Connectivity
Product Description
Product Model: 63-4948-70Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4948-70
Product Brand: TE Connectivity
Features
- TE Connectivity 50 Ohm RF Coaxial BNC Connectors - PCB/Panel Mount Jacks. A range of vertical and right angle mount 50 Ohm RF coaxial BNC jack connectors designed for PCB / Panel mounting. These 50 Ohm RF coax BNC connectors have a nickel body, a polymethylpentene dielectric and are available with a VALOX or metal housing, with or without mounting posts and various contact plating options. Please refer to additional data table for details. For insulated bushing see stock number ; 787-1622 787-1622 For jam nut see stock number ; 680-7400 680-7400
Spec
- Quantity：1piece
- G***er : Female
- Mounting Type : PCB Mount
- Impedance : 50Ω
- Termination Method : Through Hole
- Body Orientation : Right Angle
- Bulkhead : Yes
- Operating Frequency : 0 → 4GHz
- Body Plating : Nickel
- Maximum Operating Temperature : +85°C
- Contact Material : Phosphor Bronze
- Contact Plating : Gold
- CODE No.:680-7065
