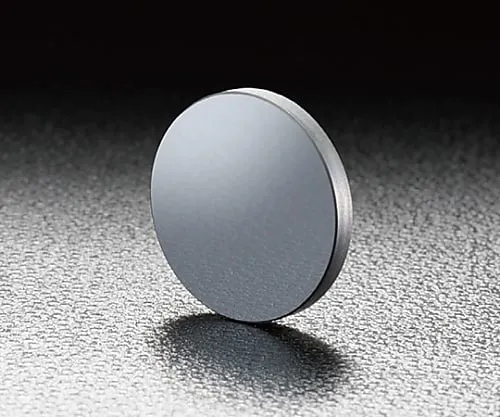

61-6930-02 Silicone Window For Infrared Laser φ30mm Thickness 3mm OPSI-30C03-2-3
Product Description
Product Model: 61-6930-02Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6930-02
Product Brand: SIGMAKOKI CO., LTD.
Features
- Single crystals of silicon ***d in semiconductors have no absorption at infrared wavelengths of 1.2~6 μm and can be ***d as optical elements for infrared light.
- It is a window plate made of this silicon crystal.
- Wavelengths below 1 μm are not transmitted, so it can also be ***d as an infrared light transmission filter.
- It can also be ***d as a silicon substrate for various experiments.
- Beca*** of its high thermal conductivity, it is also ***d as a substrate for high-power laser mirrors.
- We also have a ZnSe window plate for infrared that transmits a portion of visible light.
- * The silicon window plate has a metallic luster, and visible light is not reflected or absorbed and transmitted.
- * The transmittance of the silicon window plate is about 53% beca*** there is a loss due to surface reflection (27% per surface [measured value]).
Spec
-
[
common specification]
- Material: Silicone single crystal
- Parallelism: <3′
- Scratch - dig: 40?20
- Effective diameter: 90% of the outer diameter
- [Individual specification]
- Outer diameter φD: φ30mm
- Thickness t: 3mm
- RoHS conform product
