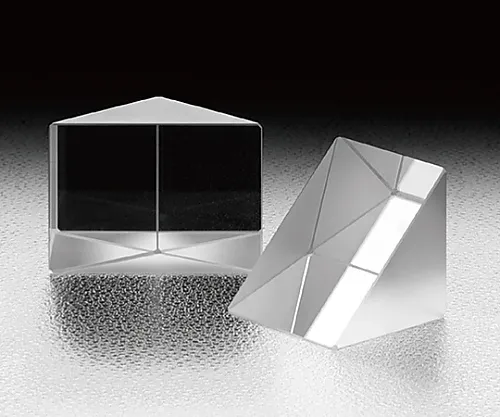

61-6928-13 45 °Coated Right Angle Prism 5mm 4J/cm2 RPB1-05-550

model: 61-6928-13
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6928-13Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6928-13
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A right-angle prism can be ***d as a mirror substitute.
  • Prisms can stand on their own without special holders and can be installed in a variety of ways, making them ***ful for miniaturizing devices.
  • In addition, the angular accuracy and surface accuracy of the prism are very high, and it is possible to *** the prism directly bonded to the machined parts.
  • RPB1~3 ***s slope reflections as a substitute for mirrors.
  • RPB1 ***s the critical angle of the prism for the reflection of the slope and is coated with an anti-reflection film on the two surfaces where light enters and exits the prism, RPB2 is coated with a reflection film (Al+MgF2) on the slope so that it can be ***d even at an incident angle below the critical angle, and RPB3 does not allow light to enter the prism and is reflected on the slope surface.
  • RPB4 is ***d for two-sided reflections sandwiching the top angle (right angle).
  • It can be ***d as a right-angle reference source or when observing two opposing directions simultaneously.
  • RPB5 is ***d to return light at the same angle to the horizontal direction as the incident light.
  • It is ***d in double-pass interferometers and autocorrelators.
  • We also have non-coated prisms.
  • * Measured A dimension is slightly shorter since it includes chamfer.
  • * The tolerance is defined by the sides of the triangle formed by the slope and the two bases.
  • * When light enters the slope from the air, most of the light escapes to the prism side and only a part of the light is reflected.
  • * If light is applied at an incident angle of 41 degrees or less (critical angle or less) from the glass side to the no-coat surface, some light will be transmitted to the air side and total reflection will not occur.
  • * Fingerprints and dirt on the no-coat surface may prevent total reflection even above the critical angle.
  • * Do not let the no-coat surface come in contact with anything.
  • * RPB5 should be ***d in the range of 0±5.7 degrees against the slope.
  • If this setting is exceeded, the camera will not be fully reflected.
  • * RPB2 reflects even at angles smaller than the critical angle due to the Al coat, but its reflectivity is 12% lower than that of RPB1.

Spec

  • [<45° straight angle prism> common specification]
  • Material: BK7 (refractive index n d=1.517)
  • Base material surface accuracy: λ/4
  • Angle accuracy: ±1′ (90° and 45°)
  • Coating: Reflective prevention film or Al+MgF 2 (protection film)
  • Adaptive wavelength: 400 - 700nm
  • Scratch - dig: 40?20
  • Effective range: Circle or ellipse inscribed to 90% of outer dimensions of rectangle
  • [Individual specification]
  • A=B: 5mm
  • Laser durability *: 4J/cm2
  • *Laser pulse width 10ns, Repeat frequency 20Hz
  • RoHS conform product
