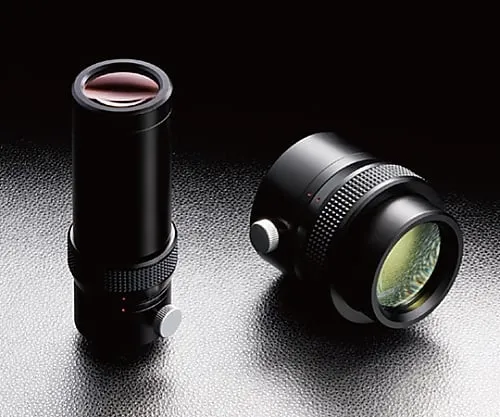

61-6927-93 Laser Beam Expander 400-700nm 3x LBED-3
Analyzer, Testing Equipment

61-6927-93 Laser Beam Expander 400-700nm 3x LBED-3

model: 61-6927-93
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6927-93Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6927-93
Product Brand: SIGMAKOKI CO., LTD.

Features

  • An optical system that magnifies a small laser beam into a large collimated beam.
  • The diopter correction function allows fine adjustment of collimation.
  • It can be ***d for high-precision optical systems such as interferometers and laser machining by lens design that takes wavefront aberration into consideration.
  • The optical system of the beam expander has an air gap configuration without gluing lenses together.
  • This allows it to be ***d with high-power lasers.
  • The Galileo lens configuration reduces the number of aberration correction lenses and shortens the total length of the beam expander.
  • By turning the diopter ring in the center of the beam expander, you can change the beam from foc***d to collimated to divergent.
  • Use this when you need a strict collimating adjustment or when you want to change the position of the beam waist.
  • You can choose from a wide range of variations that are subdivided by wavelength and magnification to suit your specifications.
  • BE-V and LBED visible light types can be fixed to the outer diameter φ44.5 mm type of He-Ne laser (05-LHP) with the supplied adapter.
  • We have a beam expander holder (LBED-H, LBED-YH) that has a beam expander built into the holder with fine aori adjustment.
  • Laser beam expander holder (BE-M22 H, BE-M34 H) with fine aori adjustment to fix the beam expander is available.
  • * The beam expander cannot be ***d in the opposite direction to produce collimated light with reduced beam diameter.
  • * Determine the divergence angle of the laser beam and the position of the beam waist, and *** an appropriate optical system.

Spec

  • Design wavelength: 400 - 700nm
  • Beam magnification: 3 times
  • Incident effective diameter (MAX): φ5.4mm
  • Mirror barrel length A: 42.0+3/-2mm
  • φB: φ36mm
  • Mounting screw C: M22 P0.75
  • φD: φ26mm
  • Outer diameter φE: φ40mm
  • Laser durability *: 4J/cm2
  • Mass: 0.12kg
  • *Laser pulse width 10ns, Repeat frequency 20Hz
  • RoHS conform product
