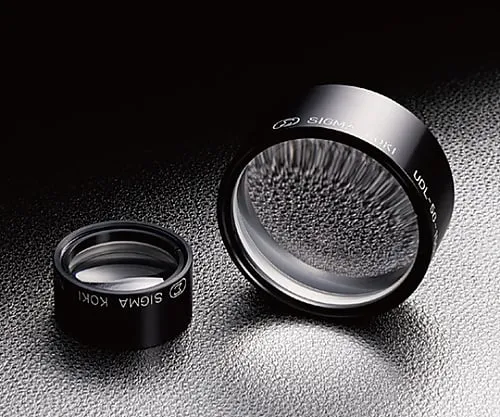

61-6927-31 Ultra-Violet Achromat Focal Length 100.1mm UDL-30-100P
Analyzer, Testing Equipment

61-6927-31 Ultra-Violet Achromat Focal Length 100.1mm UDL-30-100P

model: 61-6927-31
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6927-31Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6927-31
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Achromatic condensing lens with reduced focal length deviation in the ultraviolet range (200~400 nm).
  • It can be ***d to collect multi-wavelength lasers in the ultraviolet region and observe ultraviolet emission images.
  • When the NA is 0.1 or less, the laser collimated light can be narrowed down to the spot diameter of the diffraction limit.
  • No glass or adhesive absorbs ultraviolet light, so it has excellent light resistance.
  • * Use the condenser lens when you want to focus an object at infinity, or when you want to *** the point light source as parallel light.
  • Sufficient optical performance cannot be obtained when the camera is ***d for close-range imaging.
  • * The condenser lens has an orientation that allows light to enter.
  • * Be sure to allow parallel light to enter from the upper side (look at the engraving on the side of the lens barrel upright).
  • * Doing so can ca*** chromatic aberration and spherical aberration to become large, which can increase the size of the focus spot, and can ca*** blurred images.
  • Chromatic aberration and transmittance are reduced when the camera is ***d outside the specified wavelength range.
  • * When using with a high power laser or near a high heat source, the focusing lens may become hot and the focal length of the focusing lens may change.
  • * Heat dissipation measures are necessary when irradiating for a long time.
  • * If you want to reduce the condensing spot diameter, widen the incident beam diameter (1/e^2) to about half the effective diameter of the condensing lens.
  • Surface reflection (3~4%) of the lens ca***s a transmission loss of about 13%.

Spec

  • [ common specification]
  • Material: Synthetic quartz for excimer laser- (air gap) - for ultraviolet CaF 2
  • Design wavelength: 200nm, 308nm, 400nm
  • Coating: No coat
  • Incident allowable angle: ±1°
  • [Individual specification]
  • Focus distance f: 100.1mm
  • Outer diameter φDc: φ34mm
  • Effective diameter φDe: φ27mm
  • Length L: 13mm
  • NA : 0.14
  • WD : 92.5mm
  • RoHS conform product
