Features

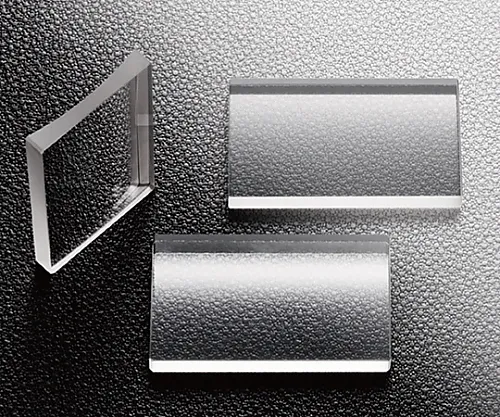

• Cylindrical flat concave lenses (cylindrical flat concave lenses) have the curvature of a concave lens in the vertical direction and no curvature in the horizontal direction.
• It is ***d in combination with cylindrical plano-convex lenses to shape elliptical beams of semiconductor lasers into circular beams.
• It is a lens made of synthetic quartz that can be ***d with ultraviolet light below 350 nm and has high laser resistance.
• By using a cylindrical lens in the optical system, the beam shape and the aspect ratio of the illumination light can be deformed.
• A cylindrical lens holder (CHA) is available for fixing cylindrical lenses.
• * Cylindrical flat concave lenses have chromatic aberration, and the focal length dep***s on the wavelength.
• Cylindrical flat concave lenses allow light to enter in certain directions.
• * Be sure to allow parallel light to enter from the concave side.
• * Doing the reverse operation will ca*** the spherical aberration to increase and may result in poor optical performance.
• * The transmittance of the uncoated product is about 90% due to the loss ca***d by the reflection of the front and back of the lens.
