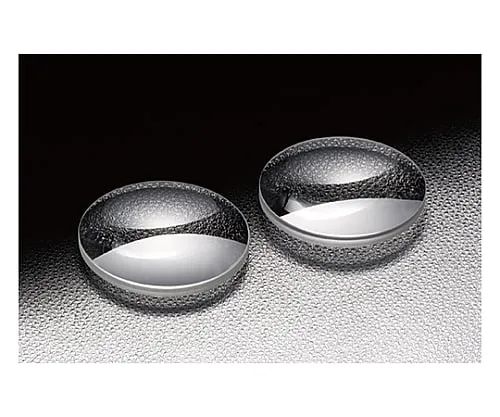

61-6909-71 Biconvex Lens (Synthetic F***d Silica) φ5mm Focal Length 6.5mm SLSQ-05B-06P
Product Description
Product Model: 61-6909-71Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6909-71
Product Brand: SIGMAKOKI CO., LTD.
Features
- By making both sides convex, this lens can efficiently refract light in a small space and collect more light.
- Use this function when you want to collect collimated light at the shortest distance possible or when you want to collect as much light as possible from the emission point.
- It is a lens made of synthetic quartz with high laser resistance that can be ***d in ultraviolet light below 350 nm.
- It can be selected according to your specifications from the wide variety of subdivided by outer diameter size and focal length.
- Chromatic aberration corrected achromatic lenses (DLB) are also available.
- * Spherical biconvex lenses have chromatic aberration, and the focal length dep***s on the wavelength.
- * The spherical aberration of a biconvex lens is larger than that of a plano-convex lens, and the focus spot may not be concentrated at one point.
- * The transmittance of the uncoated product is about 90% due to the loss ca***d by the reflection of the front and back of the lens.
Spec
-
[
common specification]
- Material: Synthetic quartz
- Design wavelength: 546.1nm
- Refractive index: n e=1.460
- Coating: No coat
- Effective diameter: 90% of the outer diameter
- Scratch - dig: 20-10 φ10mm≦D, 40?20 D<φ10mm
- [Individual specification]
- Outer diameter φD: φ5mm
- Focus distance f: 6.5mm
- Edge thickness te: 1.6mm
- Center thickness tc: 2.8mm
- Back focus fb: 5.5mm
- Curvature half diameter r: 5.52mm
- Eccentricity: <3′
- RoHS conform product
