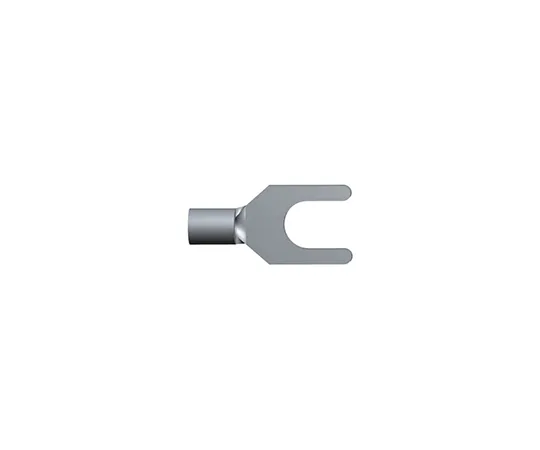

63-4948-12 TE Connectivity Uninsulated Crimp Spade Connector, 0.26mm² to 1.65mm², 22AWG to 16AWG, M4 Stud Size 130519
Electronic/Electrical Parts and Controll Equipments

63-4948-12 TE Connectivity Uninsulated Crimp Spade Connector, 0.26mm² to 1.65mm², 22AWG to 16AWG, M4 Stud Size 130519

model: 63-4948-12
brand: TE Connectivity

Product Description

Product Model: 63-4948-12Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4948-12
Product Brand: TE Connectivity

Features

  • For suitable hand crimp tool see stock number ; 817-325 817-325 and stock number ; 373-308 373-308 for die assembly or hand crimp tool stock number ; 162-3159 162-3159. TE Connectivity SOLISTRAND Spade Tongue Crimp Terminals. SOLISTRAND spade tongue crimp terminals designed to terminate solid and stranded wire and irregular shaped conductors. These SOLISTRAND spade tongue crimp terminals are made from fine grade high conductivity copper with tin plating and have closed barrels with brazed seams that create a uniform metal strength around the barrel. The inner surface of the barrels are either dimpled or serrated for maximum tensile strength and to maximise the electrical contact area after crimping. The bell shape barrel entrance of these SOLISTRAND spade tongue crimp terminals makes the insertion of wires easier.

Spec

  • Quantity:1bag(100pieces)
  • Insulation : Uninsulated
  • Width : 7.1mm
  • Minimum Wire Size mm² : 0.26mm²
  • Maximum Wire Size mm² : 1.65mm²
  • Minimum Wire Size AWG : 22AWG
  • Maximum Wire Size AWG : 16AWG
  • Stud Size : M4
  • Overall Length : 15mm
  • Contact Material : Copper
  • CODE No.:680-5498
