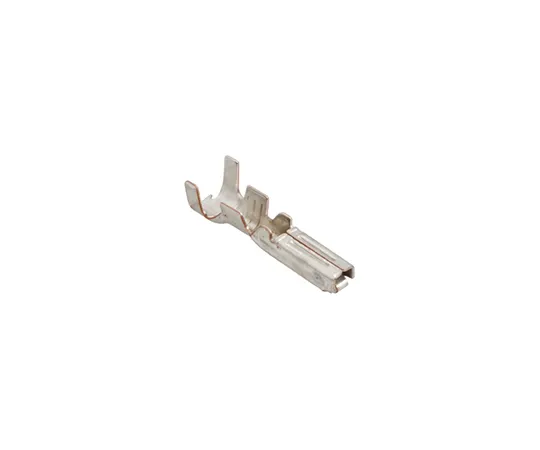

63-4947-94 TE Connectivity Superseal Series Crimp Receptacle, 0.35mm² to 0.5mm², 21AWG to 20AWG, Tin Plated 282403-1
Electronic/Electrical Parts and Controll Equipments

63-4947-94 TE Connectivity Superseal Series Crimp Receptacle, 0.35mm² to 0.5mm², 21AWG to 20AWG, Tin Plated 282403-1

model: 63-4947-94
brand: TE Connectivity

Product Description

Product Model: 63-4947-94Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4947-94
Product Brand: TE Connectivity

Features

  • TE Connectivity SUPERSEAL Series 1.5 Tab and Receptacle Contacts. From TE Connectivity, this range of tab and receptacle style crimp contacts are for *** with the SUPERSEAL series of automotive wire connectors. The SUPERSEAL crimp contacts utilise a 2-step positive lock when the contact is inserted into housing, and can maintain an IP67 sealing if ***d in conjunction with appropriate wire seals (see stock number ; 314-1176 314-1176 .) The crimp contacts in this range are constructed from tin plated brass for the tabs and tin plated phosphor bronze for the receptacles. The range also includes appropriate tooling. 368-4500 368-4500 (9-1579007-1) for the SUPER-SEAL 1.5; Tab and Receptacle Contacts 368-4516 368-4516 (785084-1) for SUPER-SEAL 1.5 (secondary lock of TAB Connector), see stock number ; 314-1182 314-1182 typical Extraction tool 1 removes the contact from its primary location, extraction tool 2 removes the contact from the secondary lock.

Spec

  • Quantity:1bag(100pieces)
  • Series : Superseal
  • Minimum Wire Size mm² : 0.35mm²
  • Maximum Wire Size mm² : 0.5mm²
  • Minimum Wire Size AWG : 21AWG
  • Maximum Wire Size AWG : 20AWG
  • Length : 16.5mm
  • Contact Plating : Tin
  • Contact Material : Phosphor Bronze
  • CODE No.:680-5179
