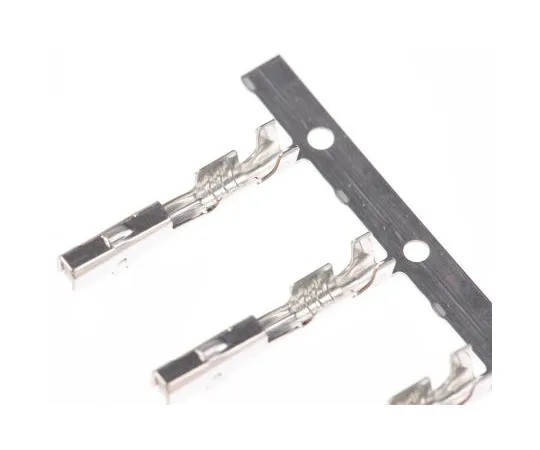

63-4947-85 TE Connectivity MULTILOCK 040 II Female Crimp Terminal Contact 18AWG 175265-1 175265-1
model:
63-4947-85
brand:
TE Connectivity
Product Description
Product Model: 63-4947-85Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4947-85
Product Brand: TE Connectivity
Features
- MULTILOCK 040 ; 070 Contacts ; Tooling. These connectors manufactured from TE Connectivity offers a solid mechanical connection which is ideal for any cable connection. They are mostly ***d in automation industry. Our range offers both female and male socket type connection. You can choose from tin or gold contact plating. Features of 040 Series:. Current rating – 8A Withstand voltage: 1kVac per 1 minute Low level resistance: 10 mΩ max (initial) Overall resistance: 20 mΩ max (final) Operating temperature: -30 – 105 °C Crimp terminating contacts Snap-in fixing connector cavities. Features of 070 Series:. Current rating: 15A Withstand voltage: 1kVac per 1 minute Low level resistance: 1 mΩ max (initial) Overall resistance: 10 mΩ max (final) Operating temperature: -30 to +105 °C Crimp terminating contacts Snap-in fixing connector cavities
Spec
- Quantity:1bag(100pieces)
- G***er : Female
- For Use With : MULTILOCK .040/.070 Hybrid I/O Connector Housing
- Series : MULTILOCK 040 II
- Minimum Wire Size mm² : 0.4mm²
- Termination Method : Crimp
- Contact Plating : Tin
- Maximum Wire Size AWG : 18AWG
- Maximum Contact Resistance : 20mΩ
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +105°C
- CODE No.:680-5097
